Throttle Position Sensor Connector End View (C1189)

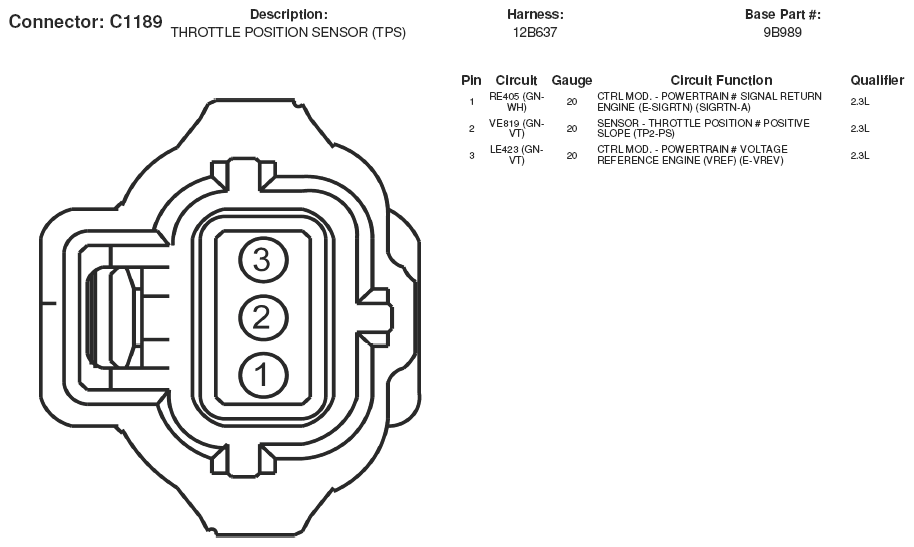

Fig 1: Throttle Position Sensor Connector End View (C1189)

G05169304

Courtesy of FORD MOTOR CO.
