Smart Junction Box Connector End View (C2280D)

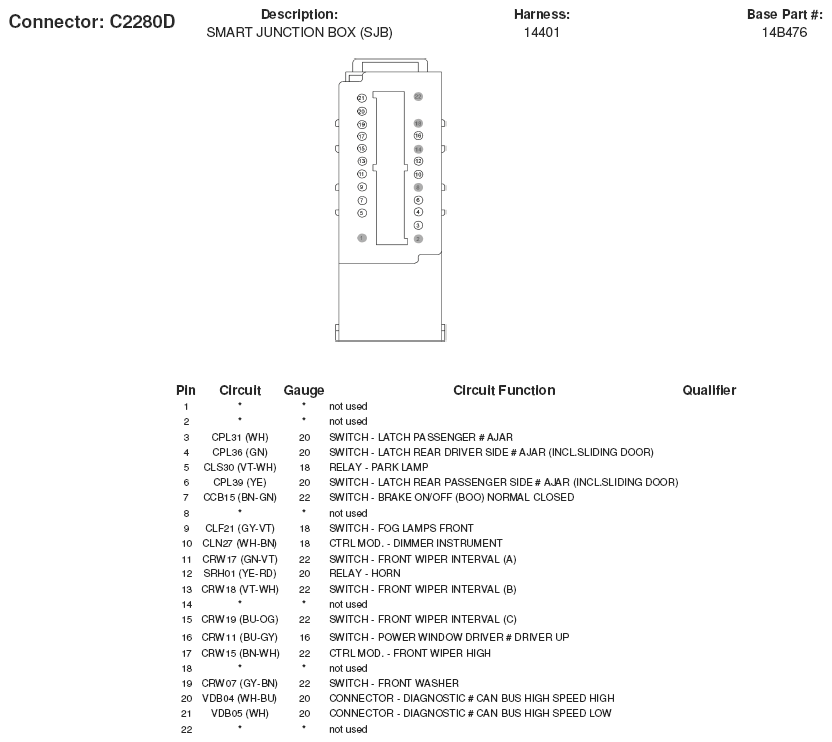

Fig 1: Smart Junction Box Connector End View (C2280D)

G05169328

Courtesy of FORD MOTOR CO.
