Smart Junction Box Connector End View (C2280C)

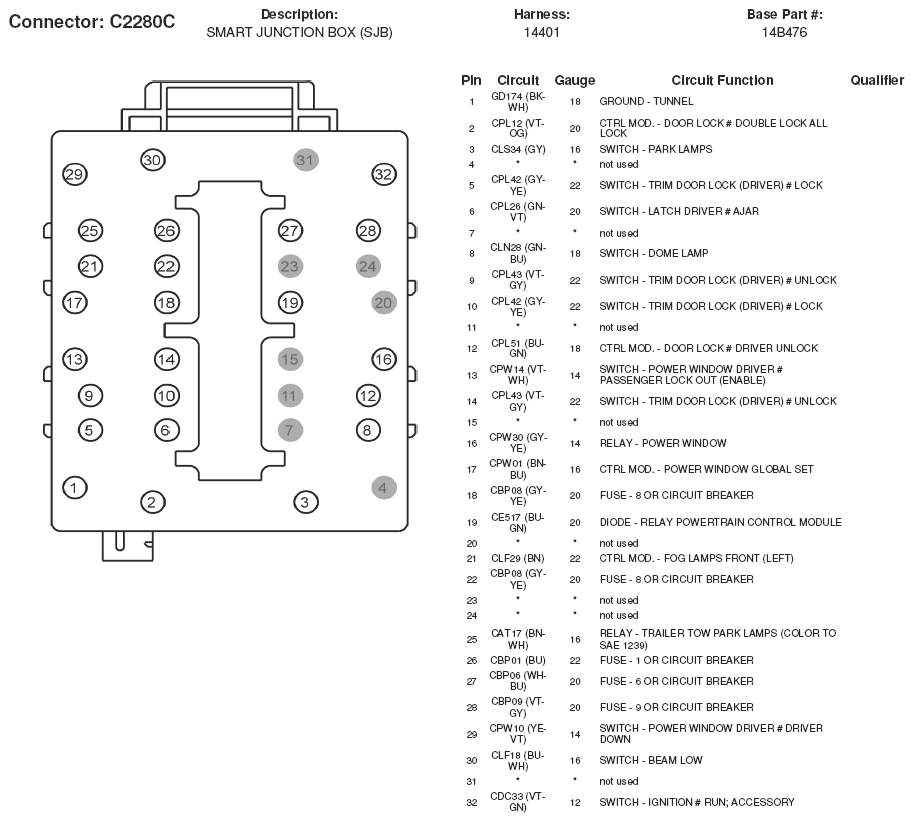

Fig 1: Smart Junction Box Connector End View (C2280C)

G05169327

Courtesy of FORD MOTOR CO.
