Joint Hose Installation Note

WARNING: This page is about a different car, the 2005 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

Install the joint hose and clamps as shown in the figure.

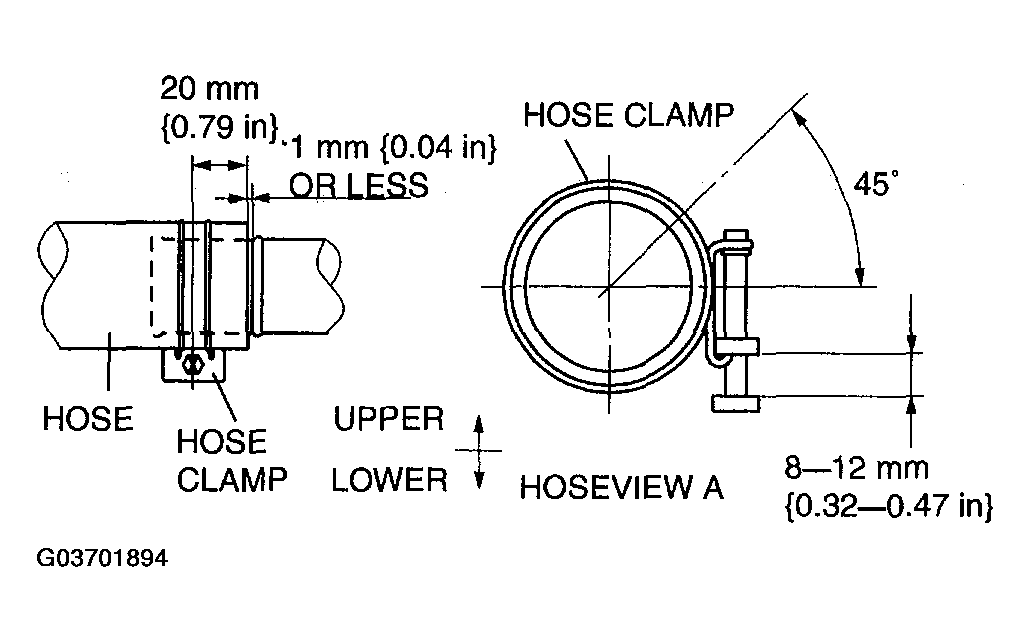

Fig 1: Identifying Dimension Of Hose Clamp
Courtesy of MAZDA MOTORS CORP.
