Home >> Mazda >> 2007 >> B4000 Base, Standard >> Repair and Diagnosis >> Electrical >> Starter >> Starting System >> Starter Motor Removal / Installation - 2.3L >> Notes

Starter Motor Removal / Installation - 2.3L: Notes

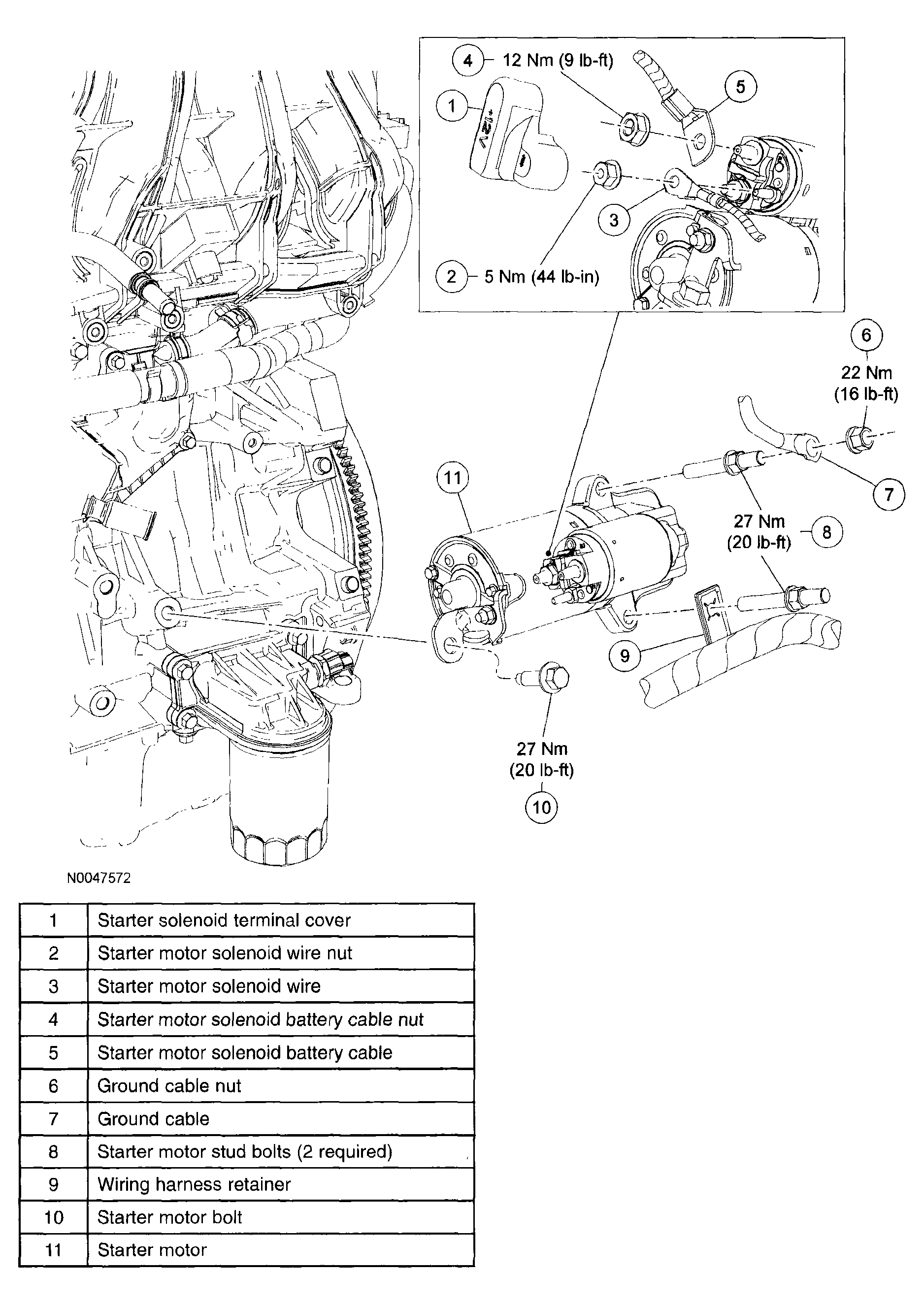

Fig 1: Starter Motor With Torque Specifications -- 2.3L

G04308315

Courtesy of MAZDA MOTORS CORP.
