Home >> Mazda >> 2007 >> B4000 Base, Standard >> Repair and Diagnosis (Single Page) >> Suspension >> Front Suspension >> Front Suspension System >> Spring >> Notes

Front Suspension System: Spring: Notes

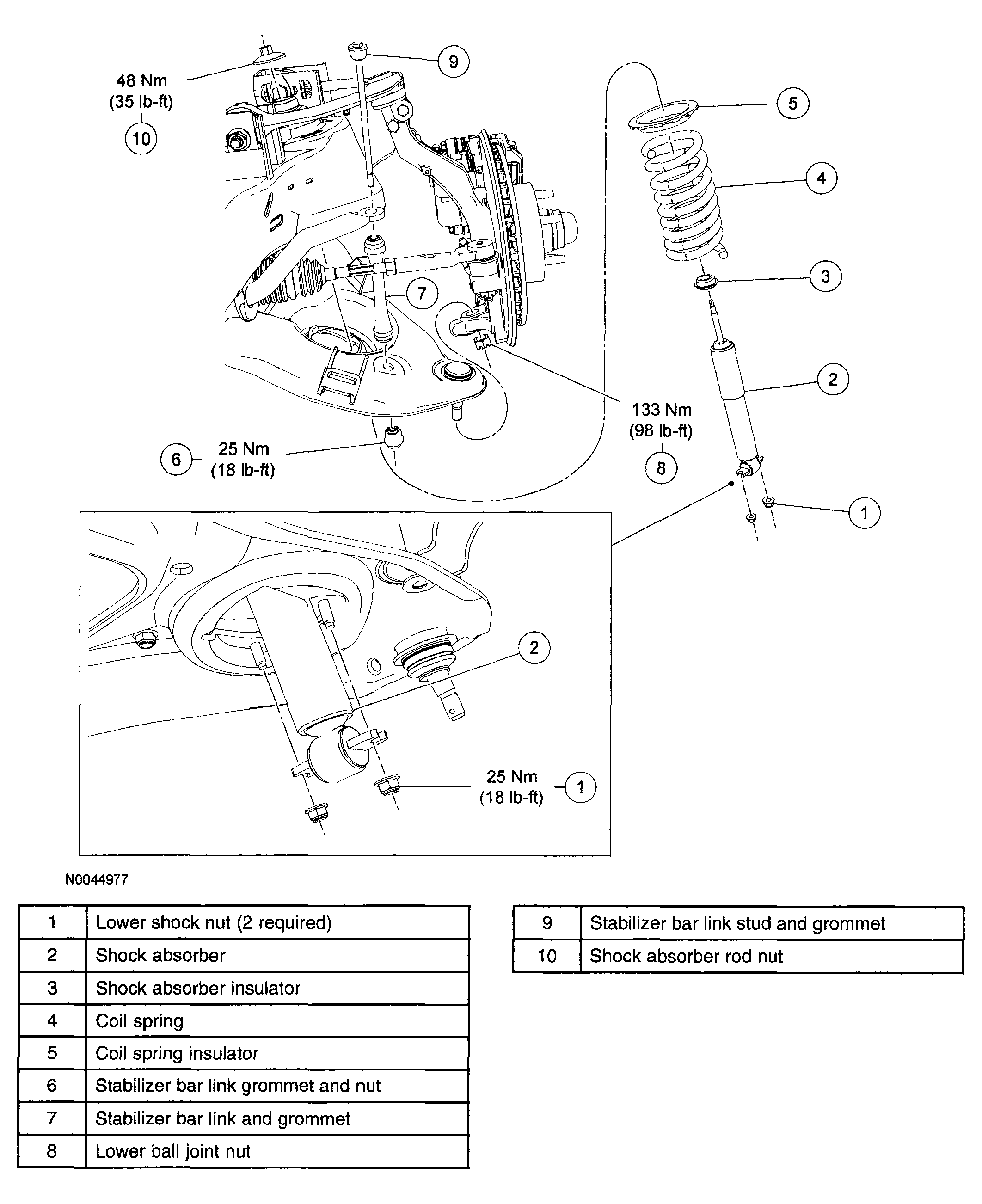

Fig 1: Front Suspension Replacement Components (Spring) With Torque Specifications

G04308592

Courtesy of MAZDA MOTORS CORP.
