Engine Ignition Components - 3.0L

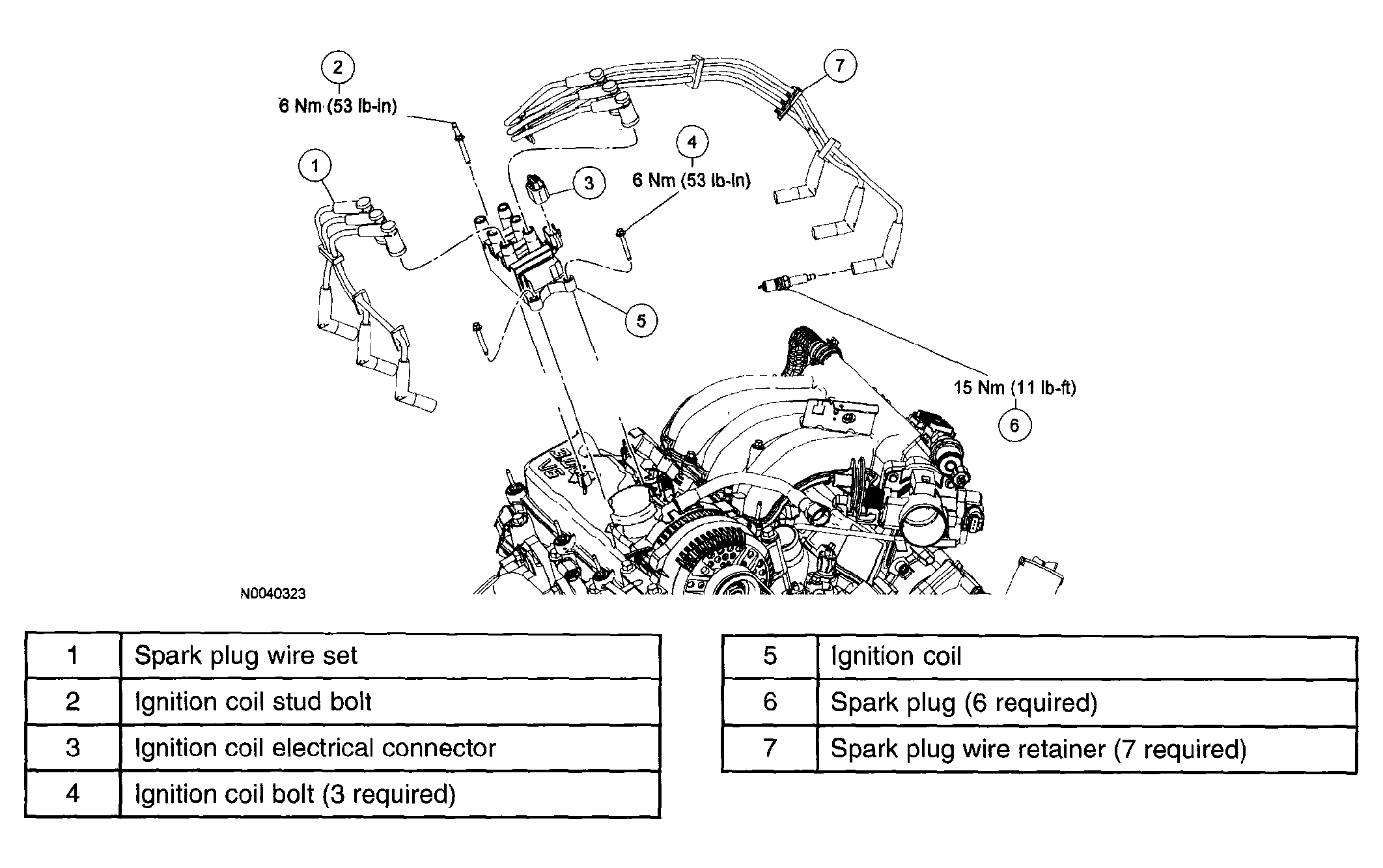

Fig 1: Engine Ignition Replacement Components With Torque Specifications (3.0L)

G04308295

Courtesy of MAZDA MOTORS CORP.
