Home >> Mazda >> 2007 >> B4000 Base, Automatic >> Repair and Diagnosis >> Restraints >> Air Bag, SRS >> Air Bag System >> Front Impact Severity Sensor >> Notes

Front Impact Severity Sensor: Notes

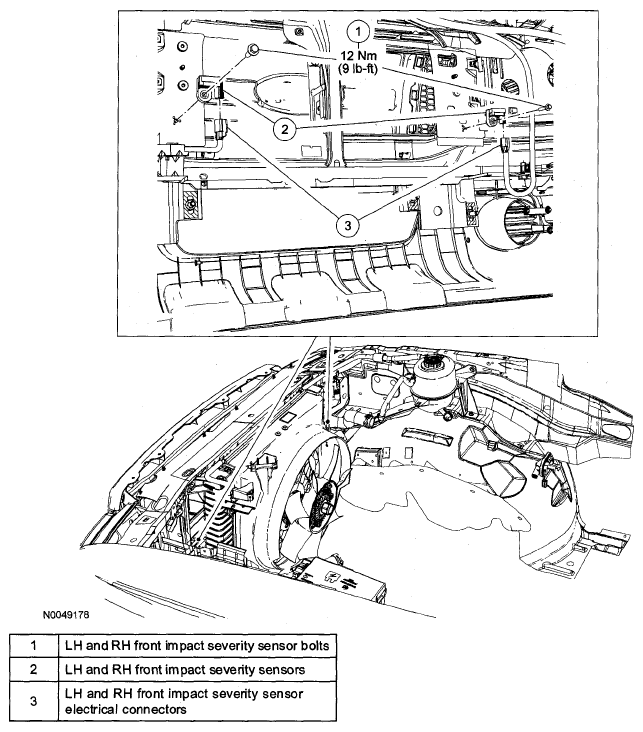

Fig 1: Front Impact Severity Sensor Replacement Components With Torque Specifications

G04930881

Courtesy of MAZDA MOTORS CORP.
