Driver Air Bag Module: Installation
CAUTION:
- Do not install the driver air bag module electrical connectors by the locking buttons. Damage to the locking buttons can occur.
CAUTION:
- The driver air bag module electrical connector locking buttons must be in the release position when the connector is being installed or connector damage may occur.
CAUTION:
- The driver air bag module electrical connectors are unique and cannot be reversed when connected to the driver air bag module. Match the electrical connector key to the keyway in the driver air bag module. Do not force the electrical connector into the driver air bag module.

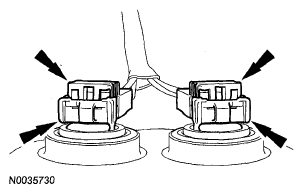

- With the locking buttons released, install the driver air bag module electrical connectors fully into the driver air bag module and seat the locking buttons.
- Install the 2 driver air bag module bolts.
Tightening Torque: 6 Nm {0.6 kgf-m, 53 in-lbi}
- Repower the SRS. See DEPOWERING AND REPOWERING , .
