Home >> Mazda >> 2007 >> B4000 Base, Automatic >> Repair and Diagnosis >> Restraints >> Air Bag, SRS >> Air Bag System >> CLOCKSPRING >> Notes

Air Bag System: CLOCKSPRING: Notes

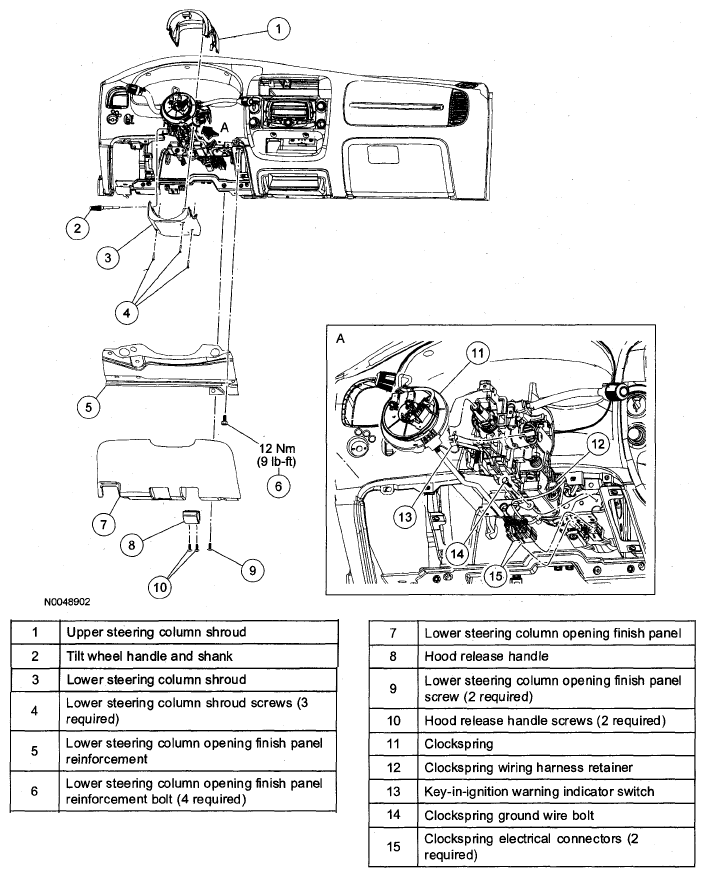

Fig 1: Clockspring Replacement Components With Torque Specifications

G04930872

Courtesy of MAZDA MOTORS CORP.
