DTC B2290: Passenger Sensing System Malfunction: Notes

WARNING: This page is about a different car, the 2005 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

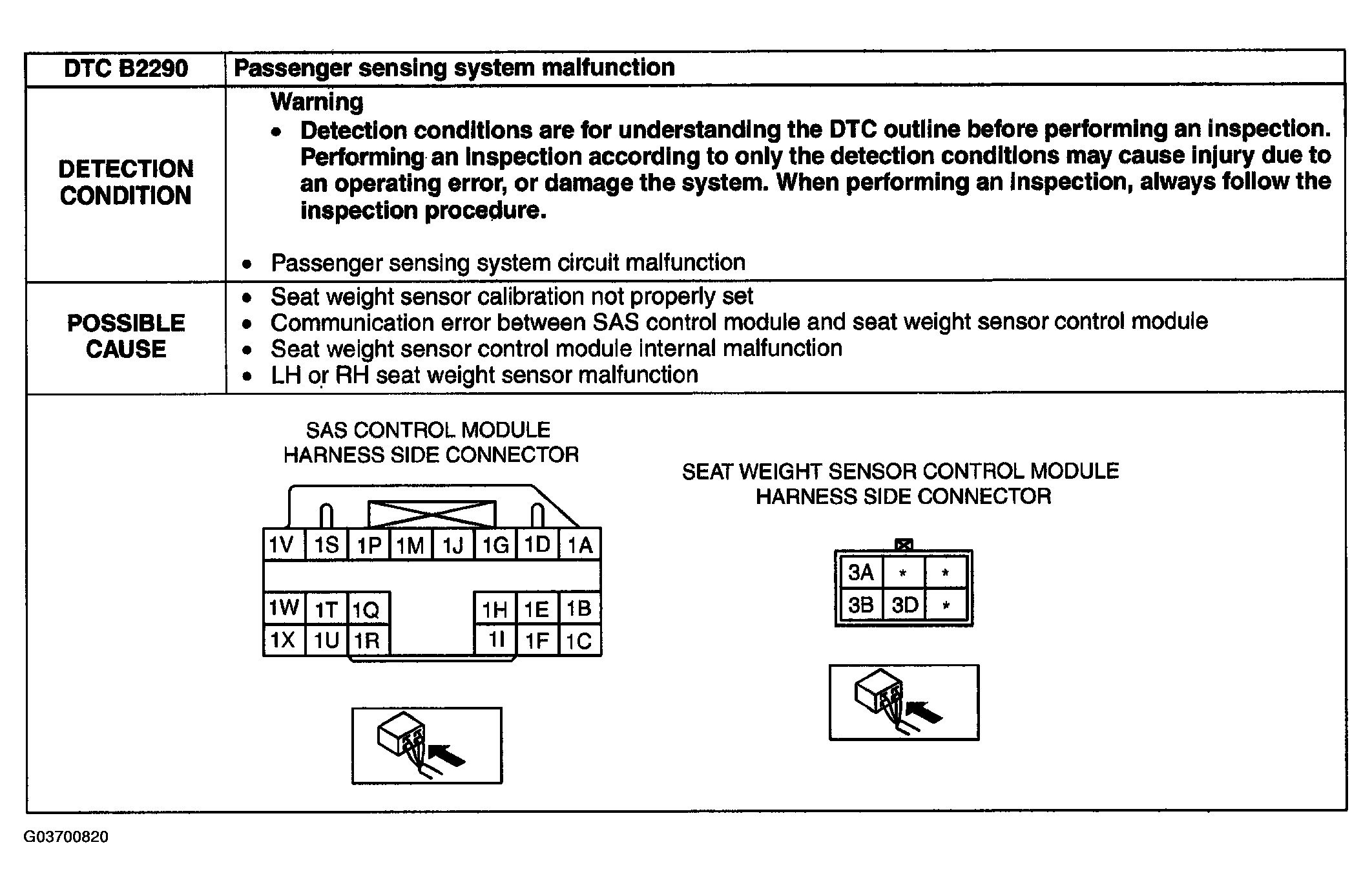

Fig 1: DTC B2290 - Detection Condition And Possible Cause Chart
G03700820Courtesy of MAZDA MOTORS CORP.
