Using the symptom troubleshooting

Symptom troubleshooting shows diagnostic procedures, inspection methods, and proper action to take for each trouble symptom.

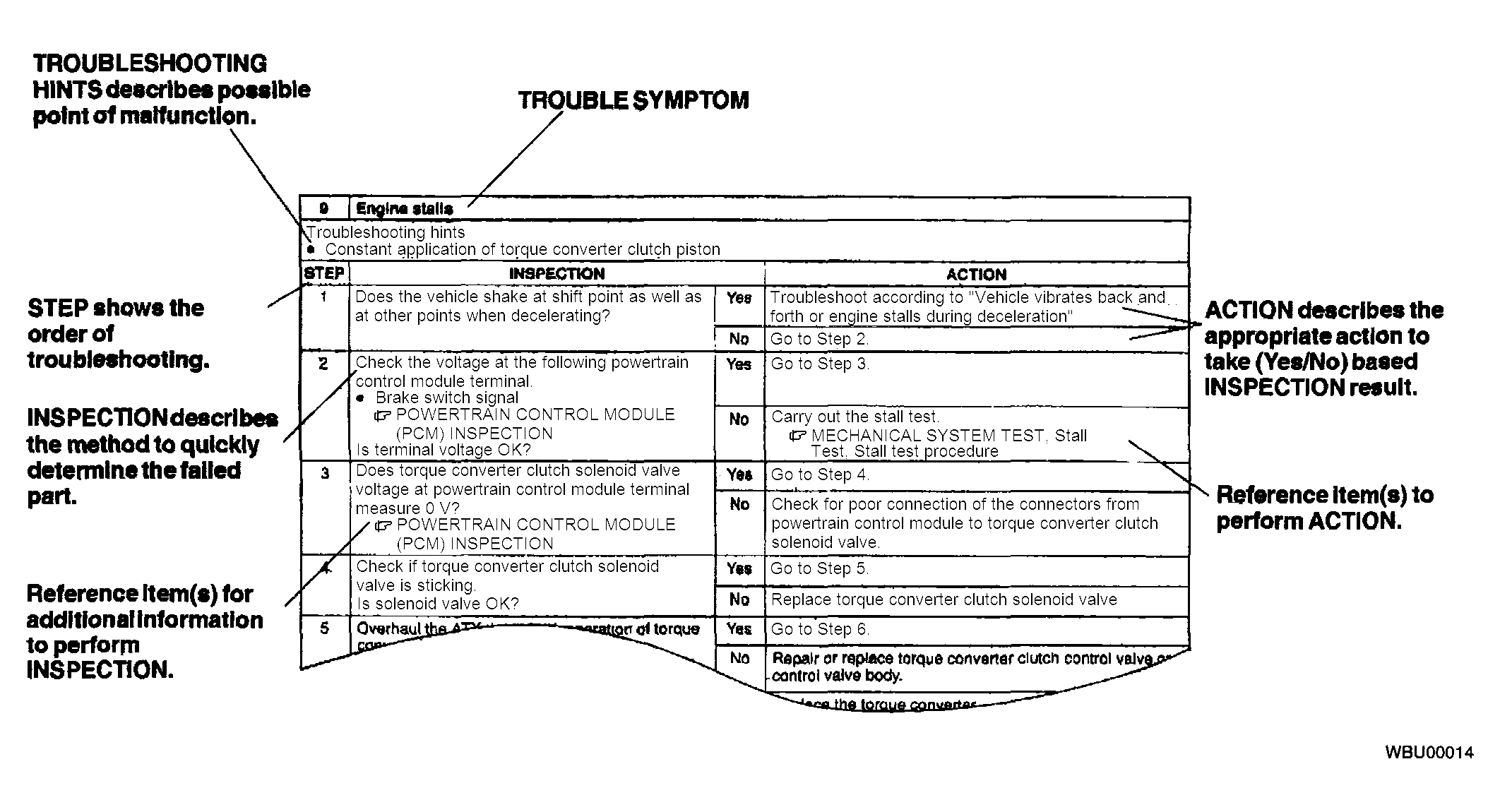

Fig 1: Symptom Troubleshooting Chart
G04306855Courtesy of MAZDA MOTORS CORP.
