Data link connector

Insert the probe into the service hole when connecting a jumper wire to the data link connector.

CAUTION:
  • Inserting a jumper wire probe into the data link connector terminal may damage the terminal.

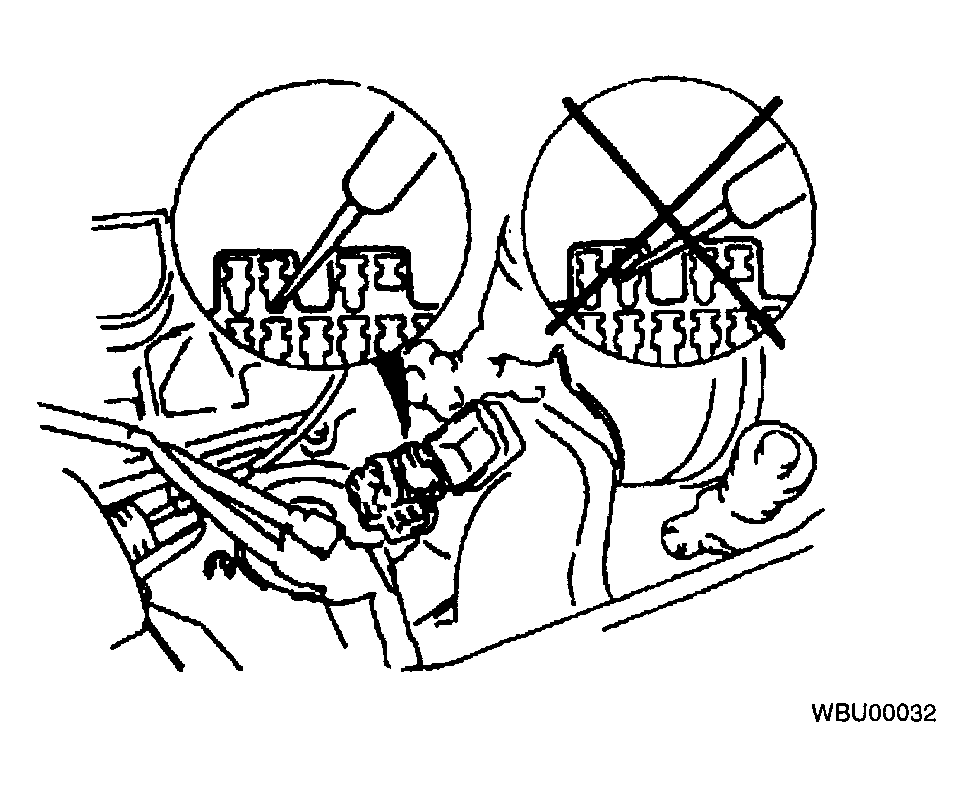

Fig 1: Inserting Jumper Wire Probe Into Service Hole
G04306872Courtesy of MAZDA MOTORS CORP.
