Trunk Lid Opener Relay Removal/Installation

WARNING: This page is about a different car, the 2005 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the trunk end trim panel.
  3. Remove the clip of the trunk lid opener relay using a flathead screwdriver to remove the trunk lid opener

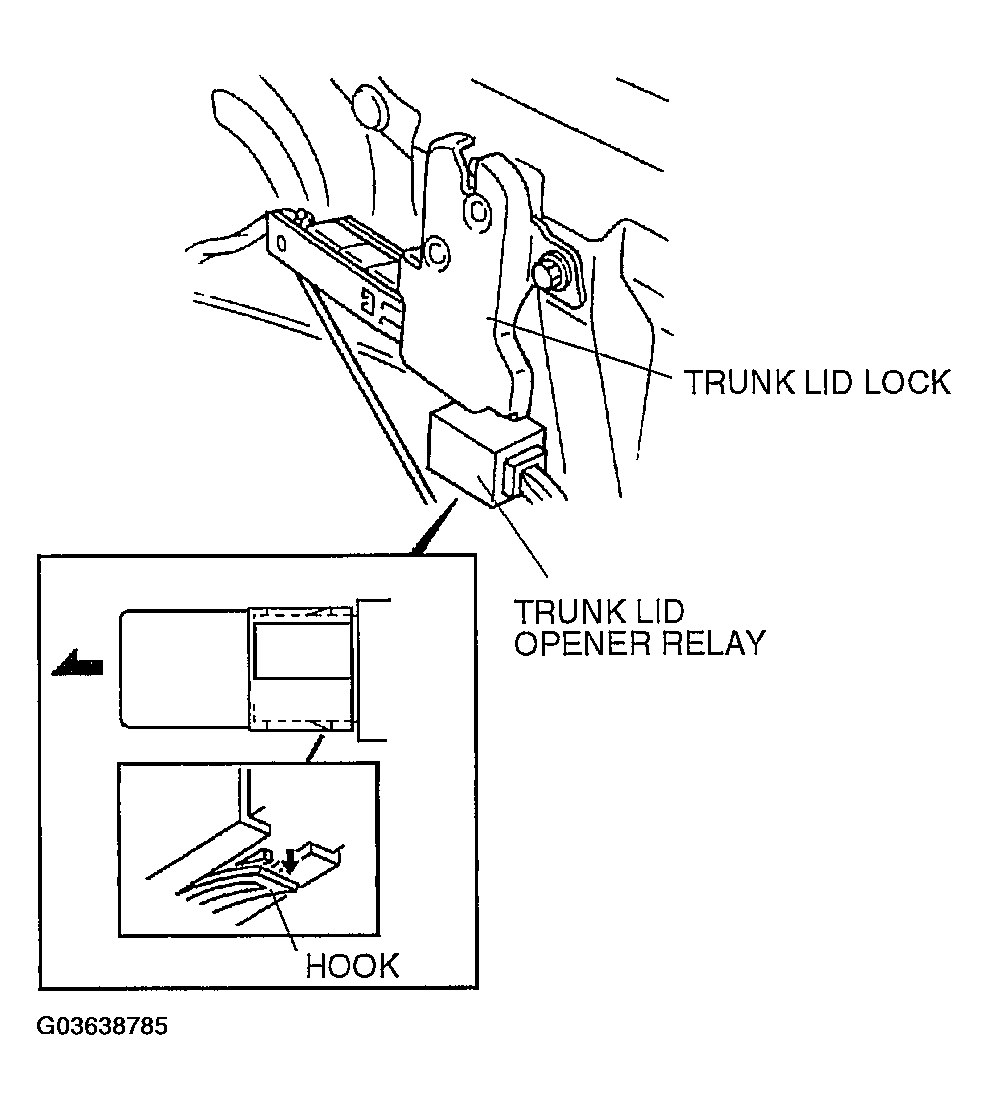

    Fig 1: Removing Trunk Lid Opener Relay
    G03638785Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
