Security And Locks Location Index

WARNING: This page is about a different car, the 2005 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

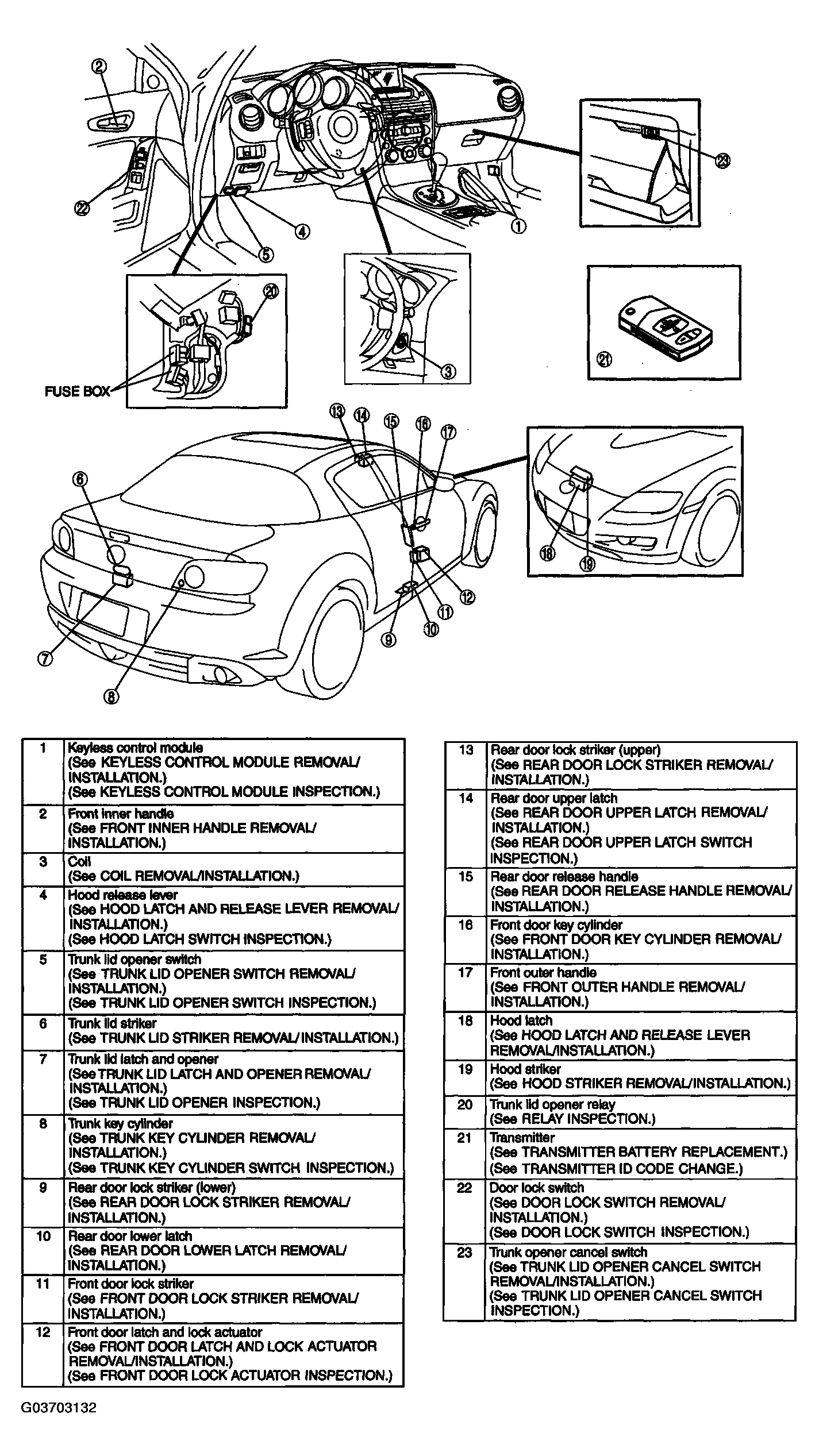

Fig 1: Identifying Security And Locks Location Index
G03703132Courtesy of MAZDA MOTORS CORP.
