Front Inner Handle Removal/Installation

WARNING: This page is about a different car, the 2005 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the inner garnish. (See INNER GARNISH REMOVAL/INSTALLATION .)
  2. Remove the front door trim. (See FRONT DOOR TRIM REMOVAL/INSTALLATION .)
  3. Remove the screws, then remove the front inner handle.
  4. Detach the cables from the front inner handle and door lock knob.
  5. Install in the reverse order of removal.

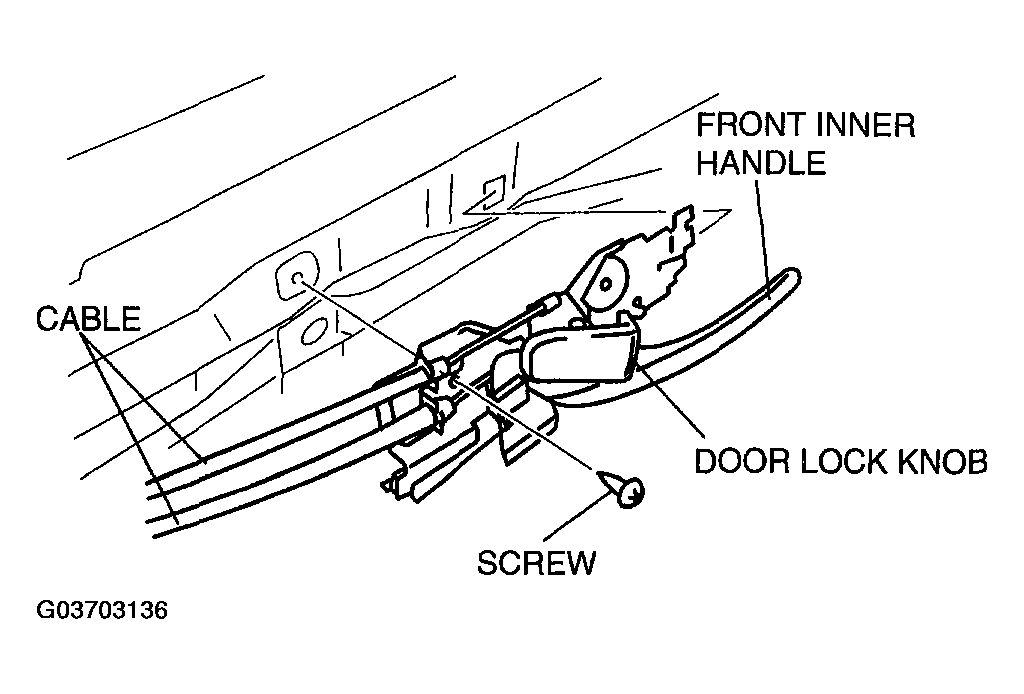

    Fig 1: Removing Front Inner Handle
    G03703136Courtesy of MAZDA MOTORS CORP.
