Mass Air Flow (MAF)/Intake Air Temperature (IAT) Sensor Removal/Installation: Notes

WARNING: This page is about a different car, the 2005 Mazda RX-8 and 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

Remove the MAF/IAT sensor connector.
Remove in the order indicated in the table.

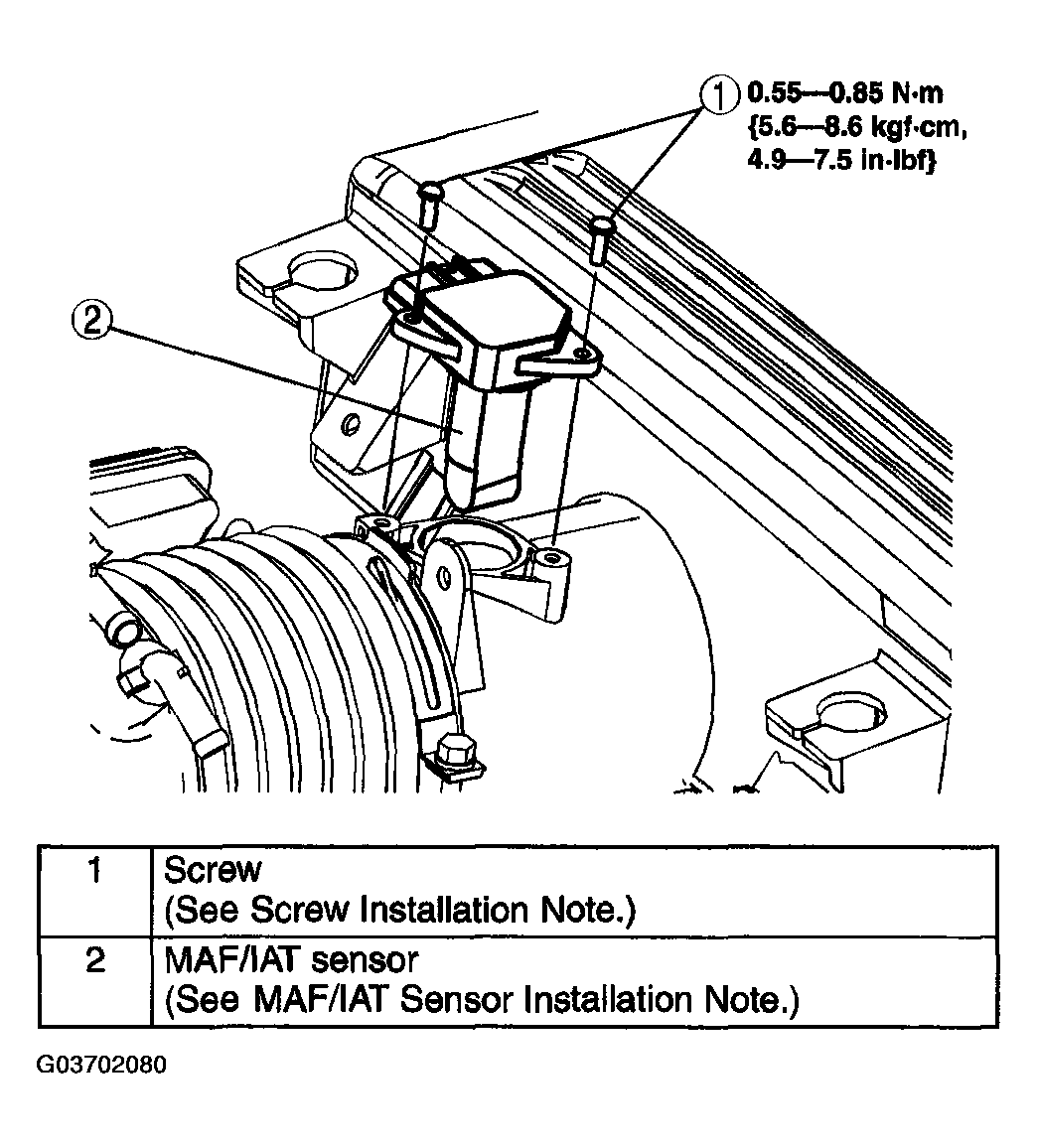

Fig 1: Mass Air Flow/Intake Air Temperature Sensor With Torque Specification
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
