Theft-Deterrent System Location Index

WARNING: This page is about a different car, the 2005 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

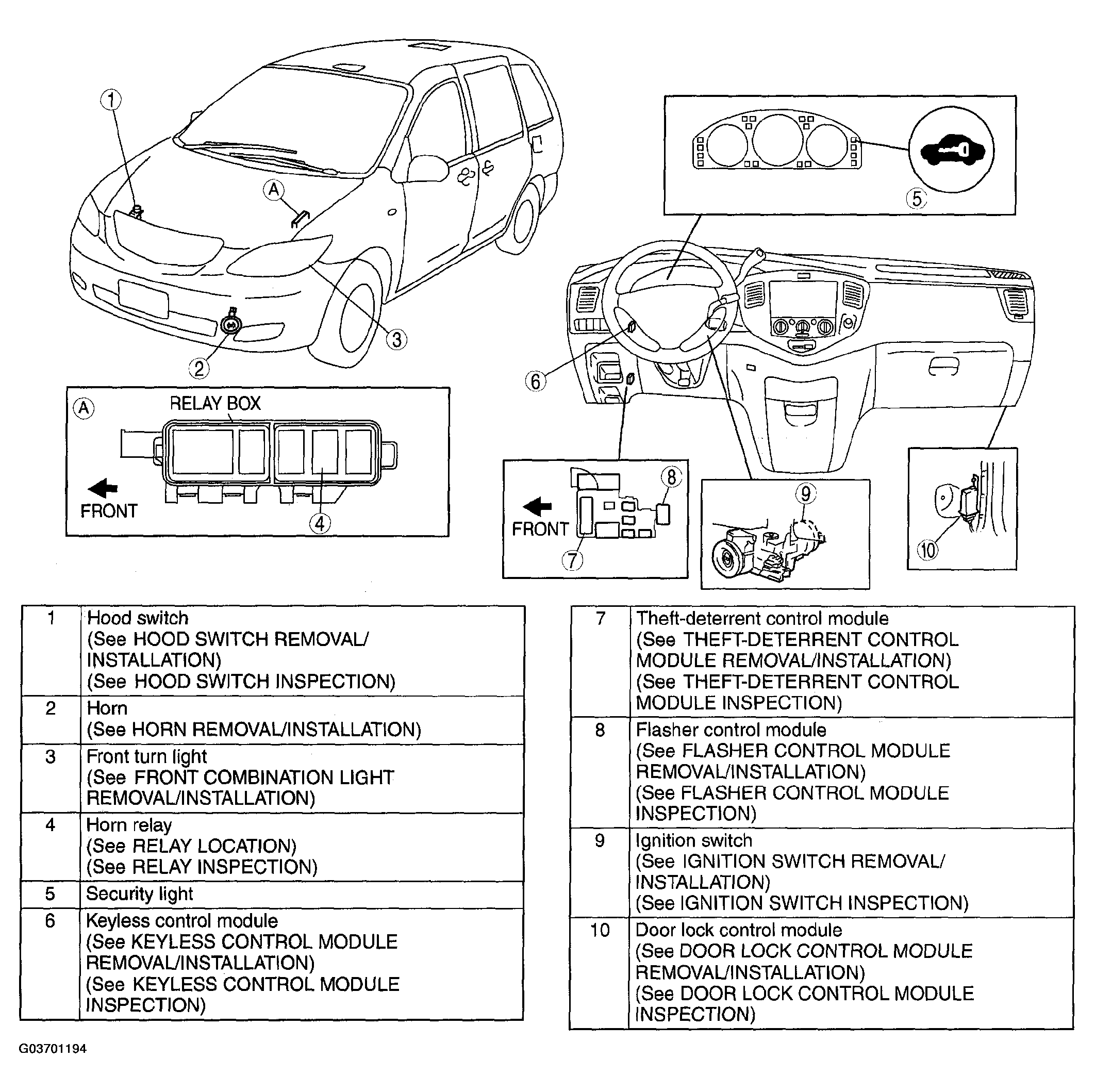

Fig 1: Identifying Theft-Deterrent System Components (1 Of 2)
G03701194Courtesy of MAZDA MOTORS CORP.

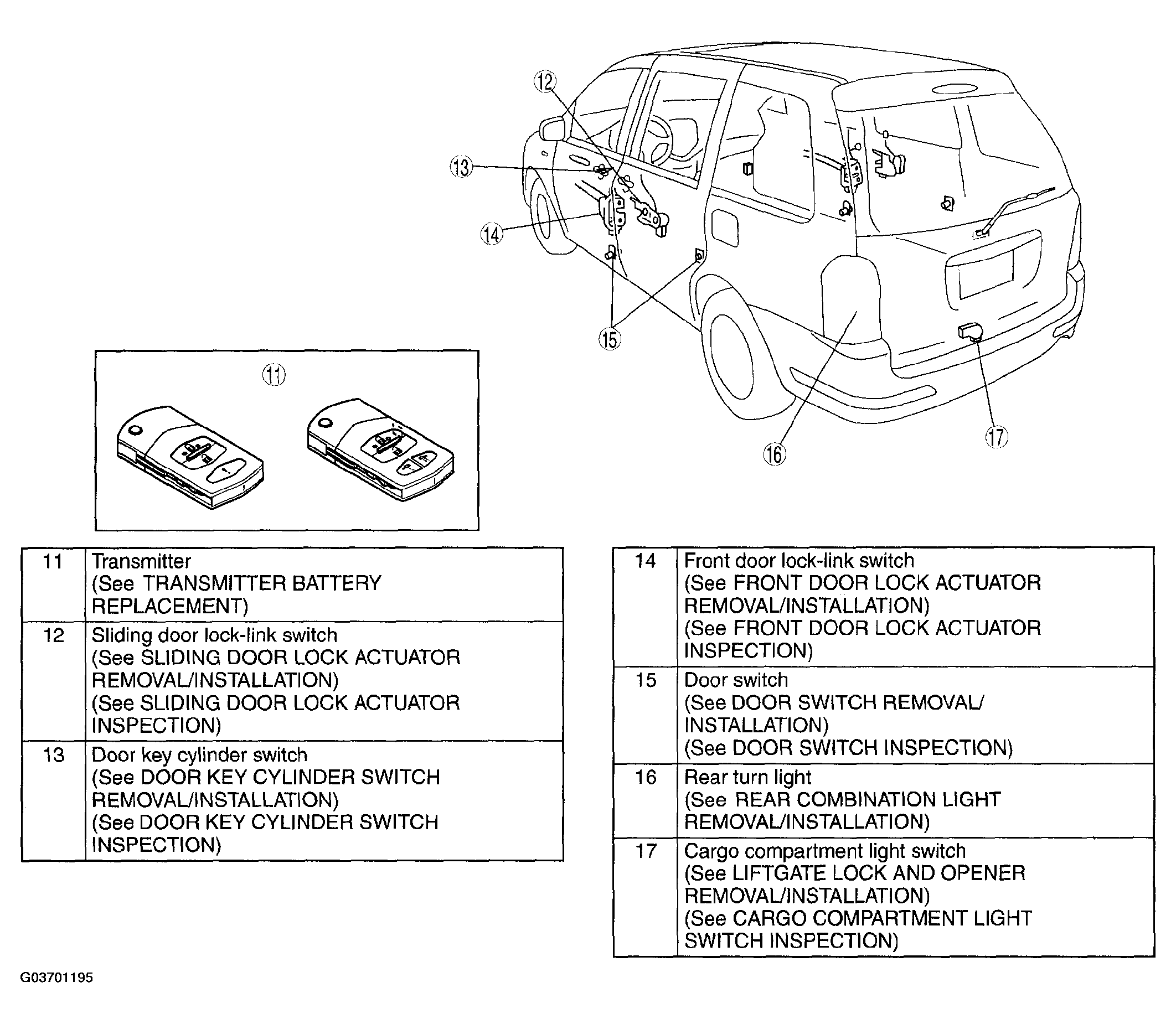

Fig 2: Identifying Theft-Deterrent System Components (2 Of 2)
G03701195Courtesy of MAZDA MOTORS CORP.
