Liftgate Lock Cylinder Switch Removal/Installation
WARNING: This page is about a different car, the 2005 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the liftgate lock cylinder switch connector.
- Disconnect the rods.
- Remove the nuts, and remove the liftgate lock cylinder.

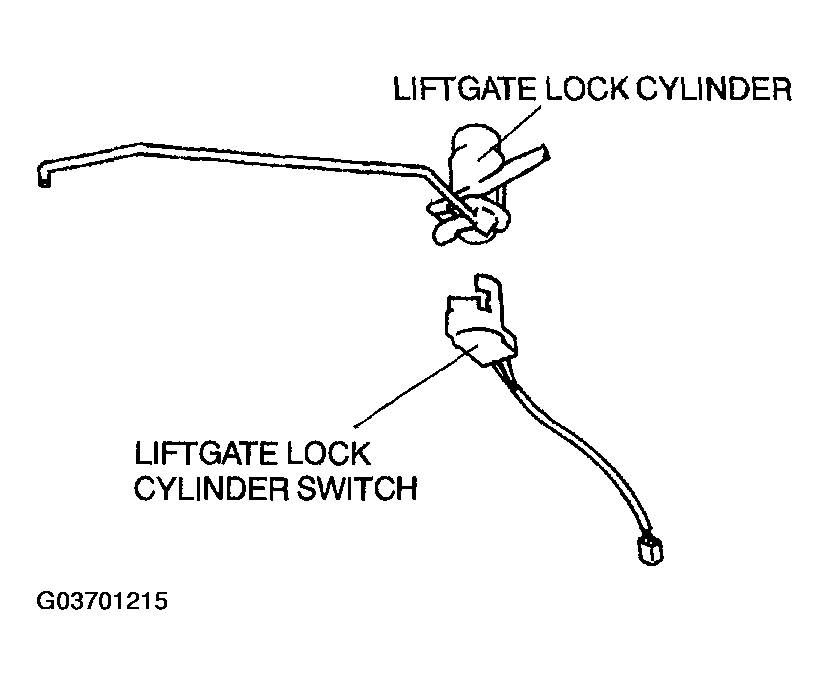

- Remove the liftgate lock cylinder switch.
Courtesy of MAZDA MOTORS CORP.
- Install in the reverse order of removal.
