Liftgate Lock And Opener Removal/Installation

WARNING: This page is about a different car, the 2005 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the liftgate lower trim. (See LIFTGATE LOWER TRIM REMOVAL/INSTALLATION .)
  3. To remove the liftgate outer handle, remove the rear finisher.
  4. Remove in the order indicated in the table.

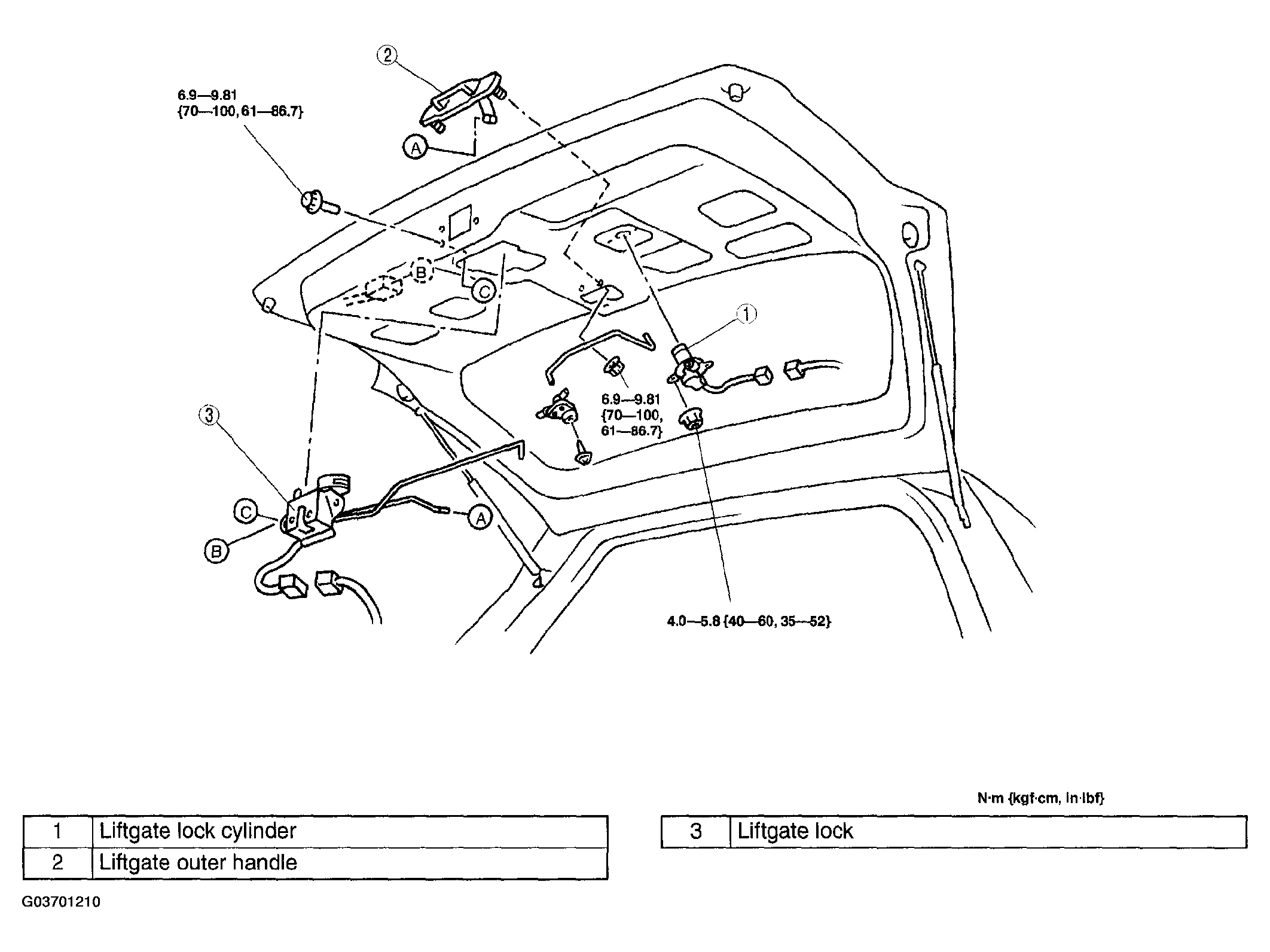

    Fig 1: Removing Liftgate Lock And Opener - With Torque Specifications
    G03701210Courtesy of MAZDA MOTORS CORP.
  5. Install in the reverse order of removal.
