Keyless Control Module Removal/Installation

WARNING: This page is about a different car, the 2005 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove in the order indicated in the table.

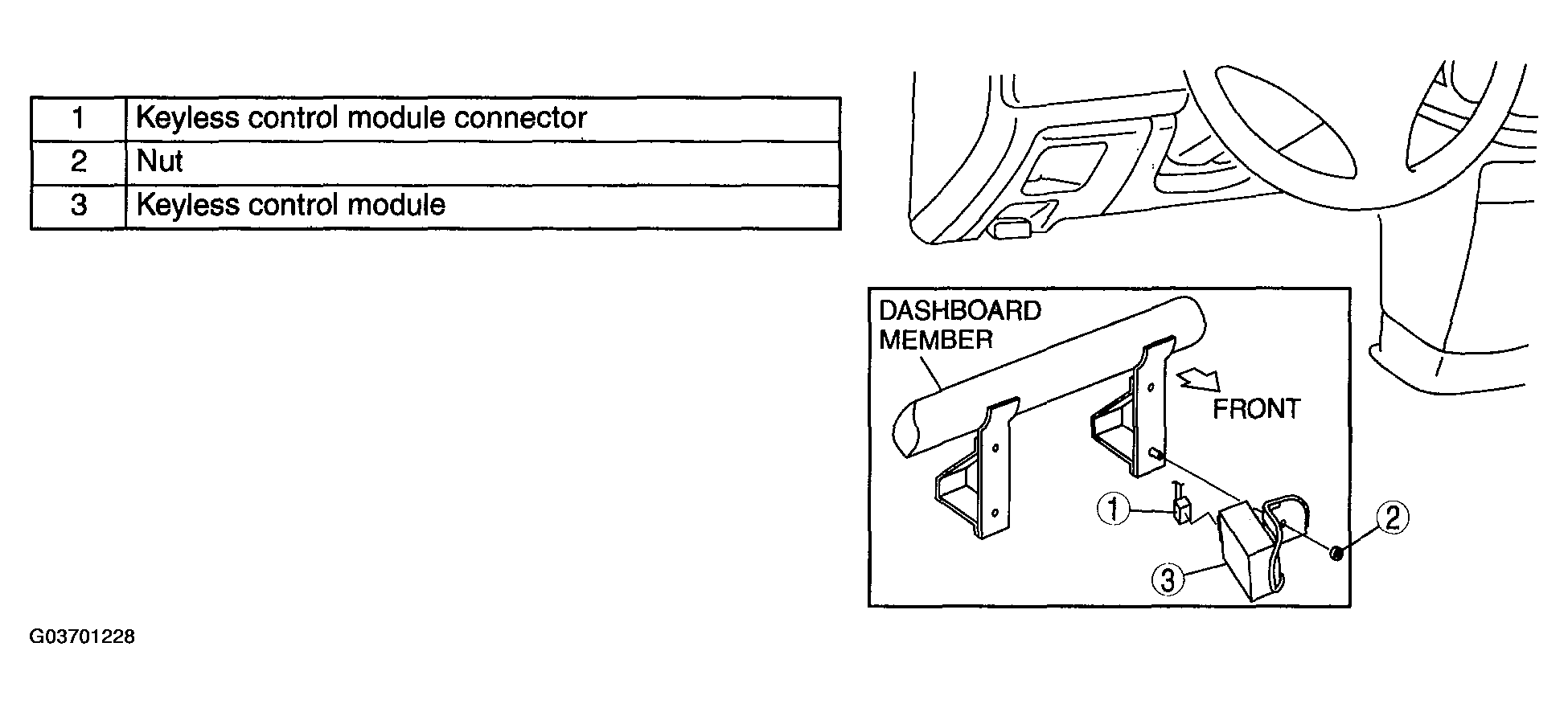

    Fig 1: Removing Keyless Control Module
    G03701228Courtesy of MAZDA MOTORS CORP.
  3. Install in the reverse order of removal.
