Door Lock Switch Removal/Installation

WARNING: This page is about a different car, the 2005 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the front door trim. (See FRONT DOOR TRIM REMOVAL/INSTALLATION .)
  3. Push out clip from behind the front door trim, and remove the switch panel.
  4. Remove the screws, and remove the door lock switch.

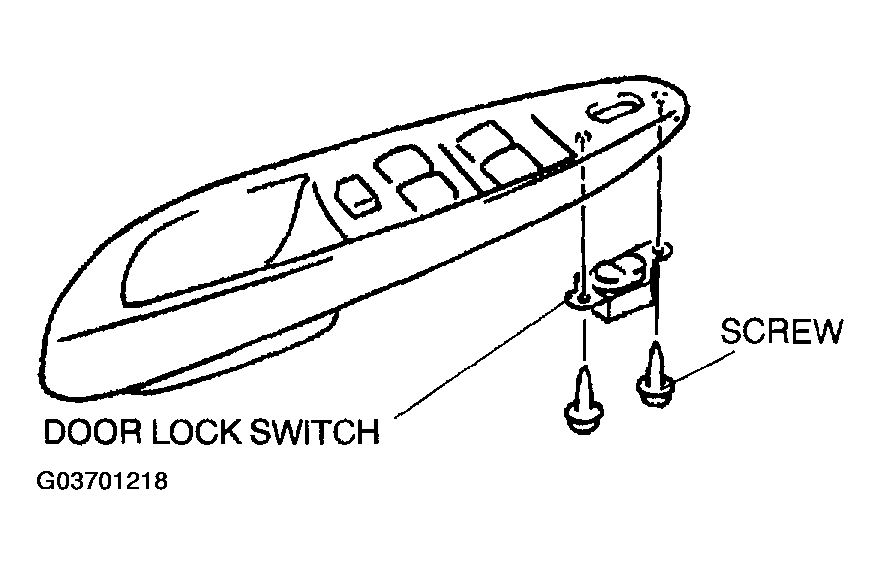

    Fig 1: Removing Door Lock Switch
    G03701218Courtesy of MAZDA MOTORS CORP.
  5. Install in the reverse order of removal.
