License Plate Light Removal/Installation

WARNING: This page is about a different car, the 2005 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the rear finisher. (See REAR FINISHER REMOVAL/INSTALLATION .)
  3. Remove in the order indicated in the table.

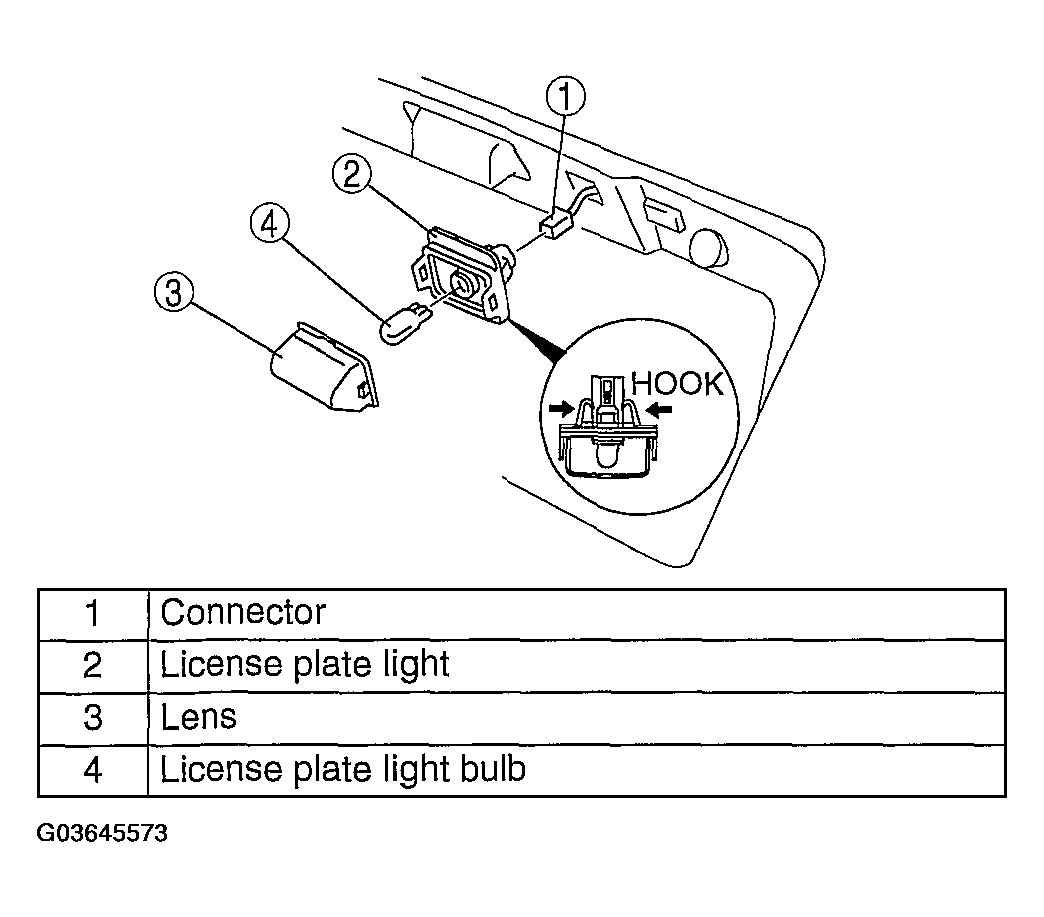

    Fig 1: License Plate Light Removal Sequence
    G03645573Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
