Piston Disassembly/Assembly Note

WARNING: This page is about a different car, the 2005 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Remove/install the piston using the SST .

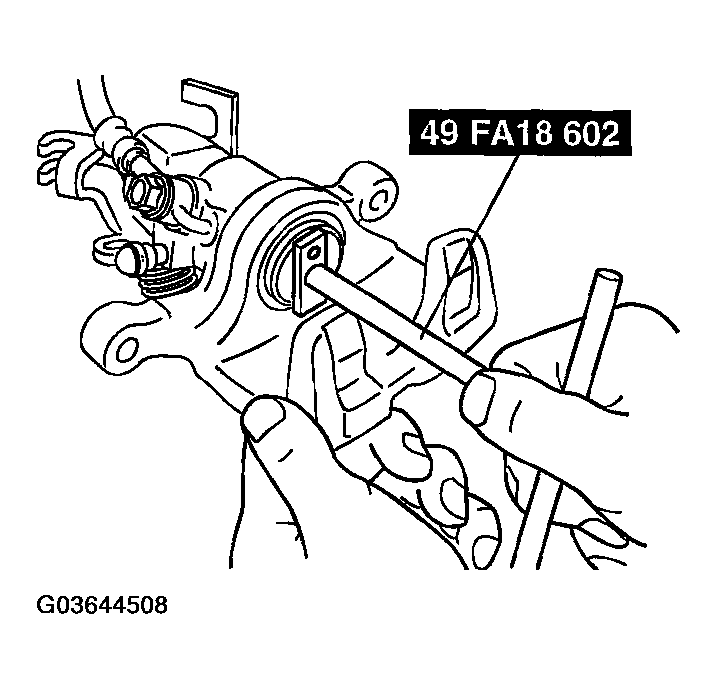

Fig 1: Removing & Installing Piston
Courtesy of MAZDA MOTORS CORP.
