Pinpoint Test 1: No Communication With The Generic Electronic Module (Gem)

WARNING: This page is about a different car, the 2003 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

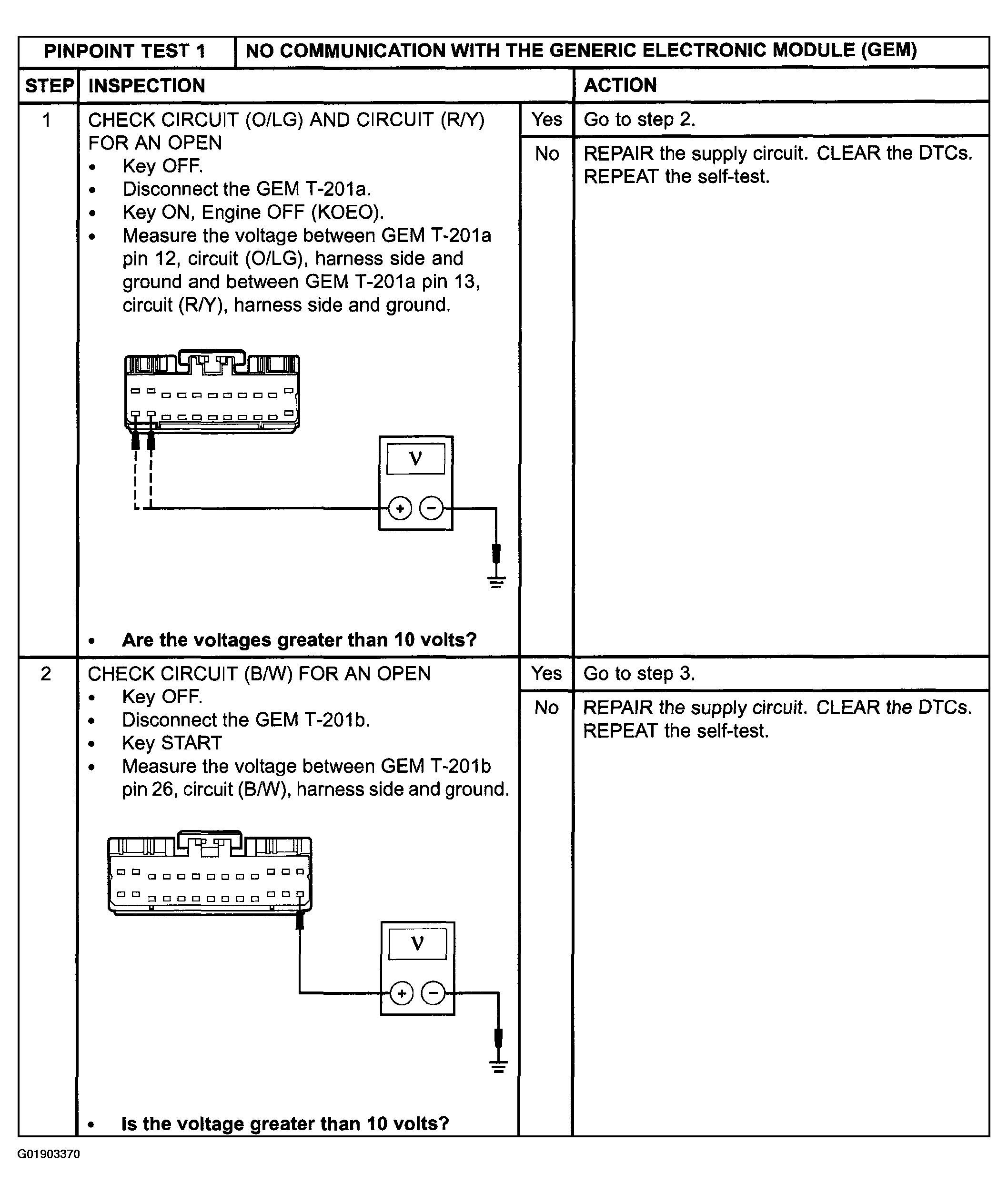

Fig 1: Pinpoint Test 1: No Communication With Generic Electronic Module (GEM) (1 Of 3)

Courtesy of MAZDA MOTORS CORP.

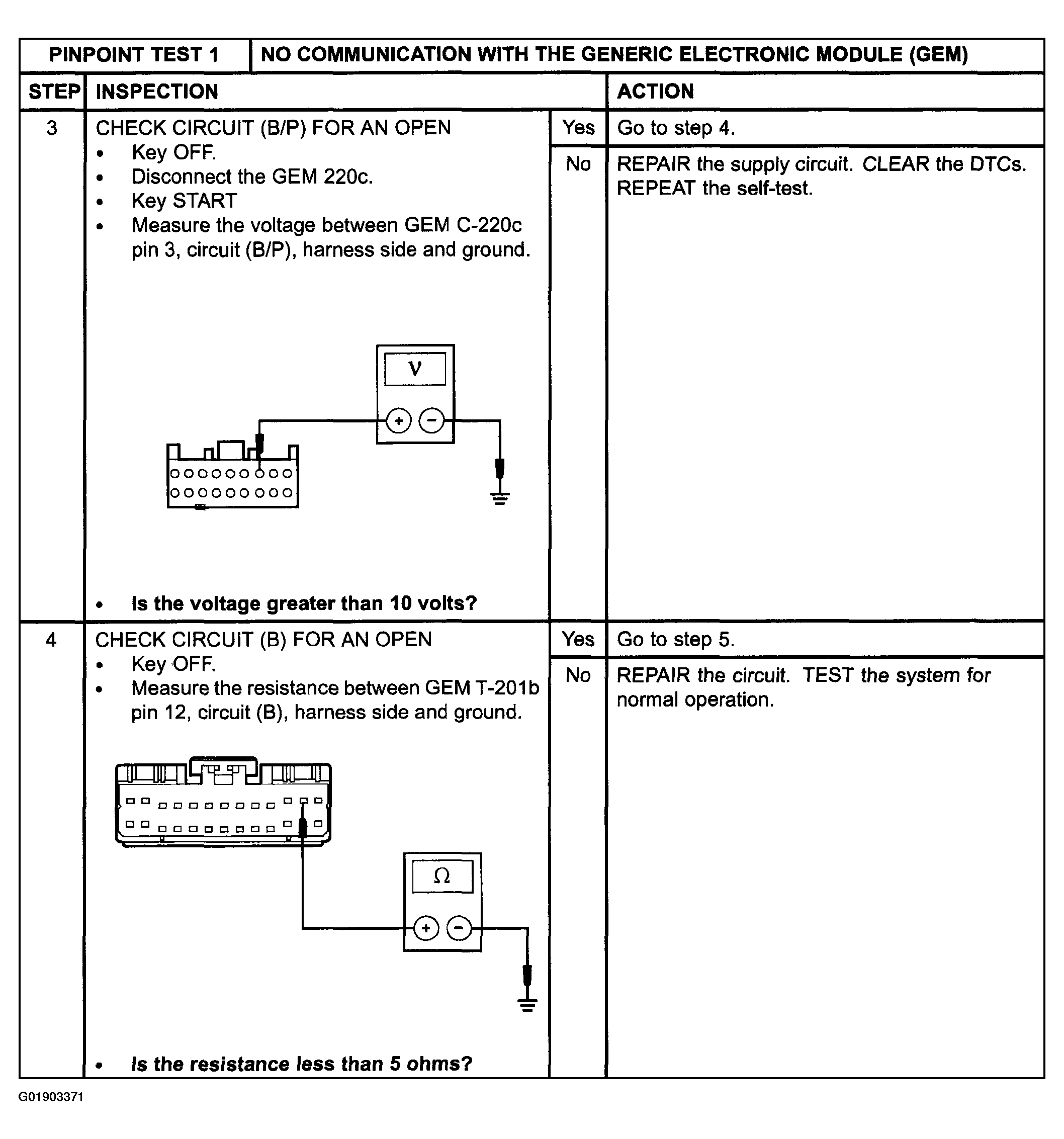

Fig 2: Pinpoint Test 1: No Communication With Generic Electronic Module (GEM) (2 Of 3)

Courtesy of MAZDA MOTORS CORP.

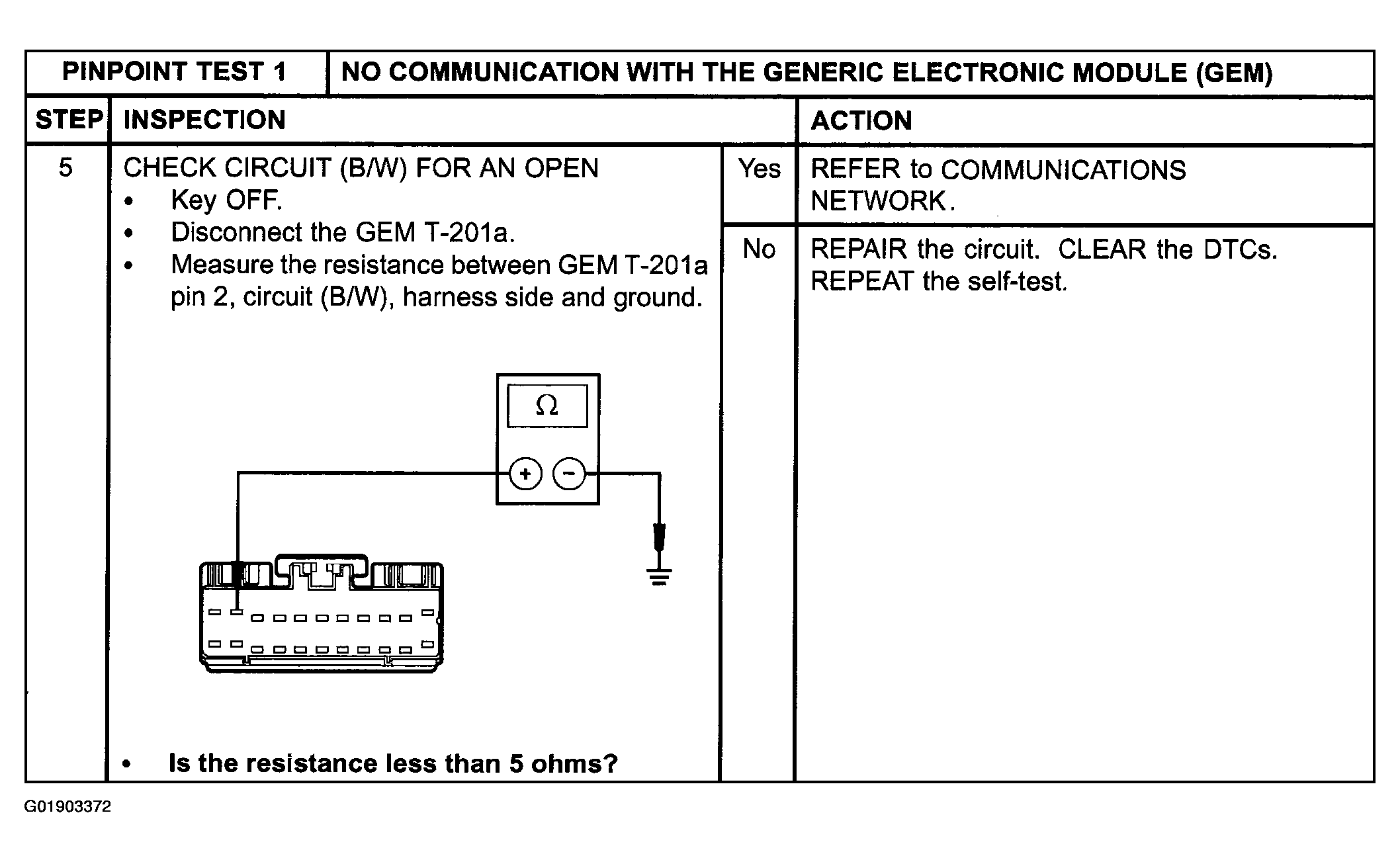

Fig 3: Pinpoint Test 1: No Communication With Generic Electronic Module (GEM) (3 Of 3)

Courtesy of MAZDA MOTORS CORP.
