Pinpoint Test 9: The Panic Feature Does Not Operate Correctly - Unlock And Lock Operate Correctly

WARNING: This page is about a different car, the 2003 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

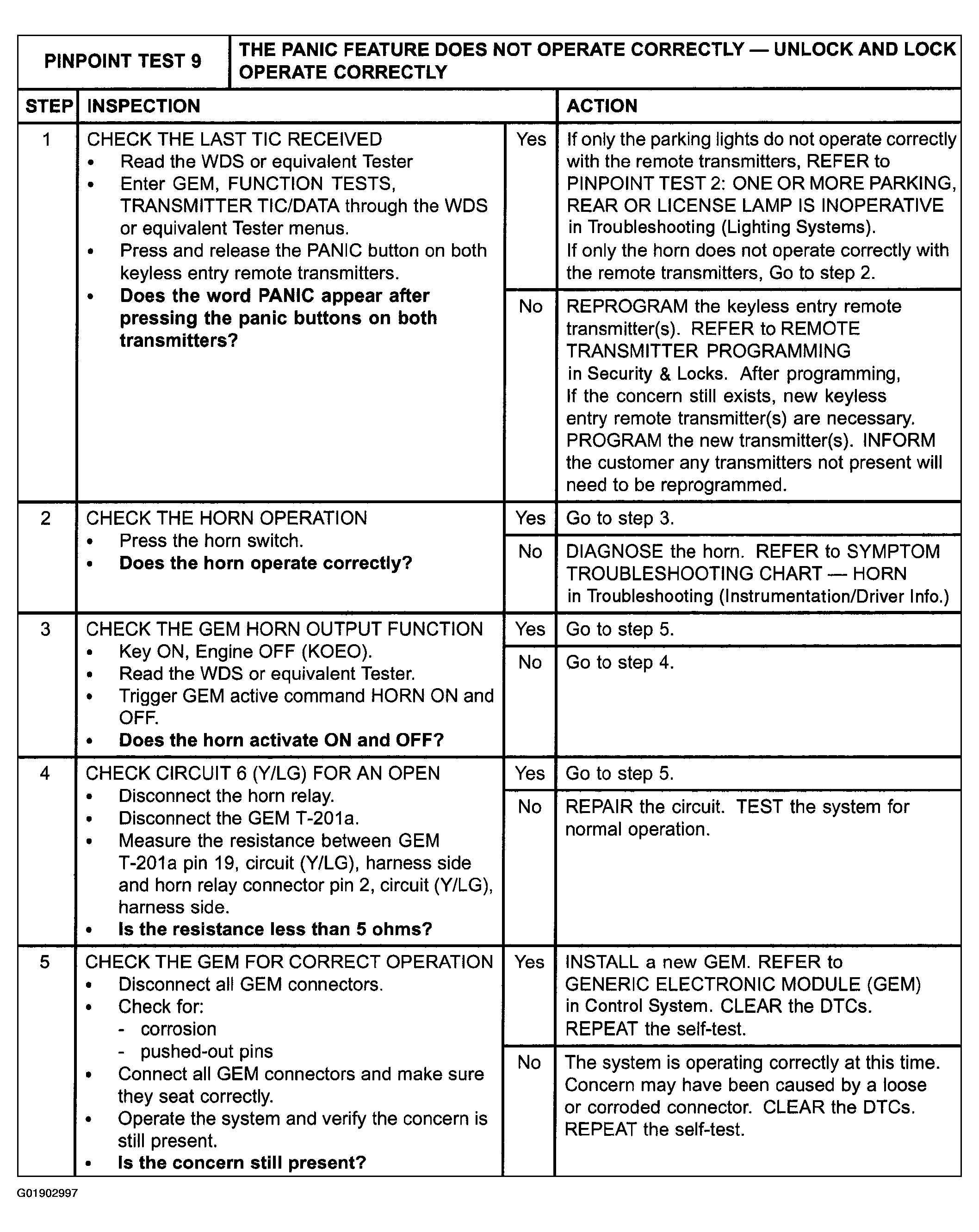

Fig 1: Pinpoint Test 9: Panic Feature Does Not Operate Correctly - Unlock And Lock Operate Correctly
G01902997Courtesy of MAZDA MOTORS CORP.
