Pinpoint Test 7: The Doors Do Not Lock/Unlock Using The Keyless Entry Remote Transmitter
WARNING: This page is about a different car, the 2003 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

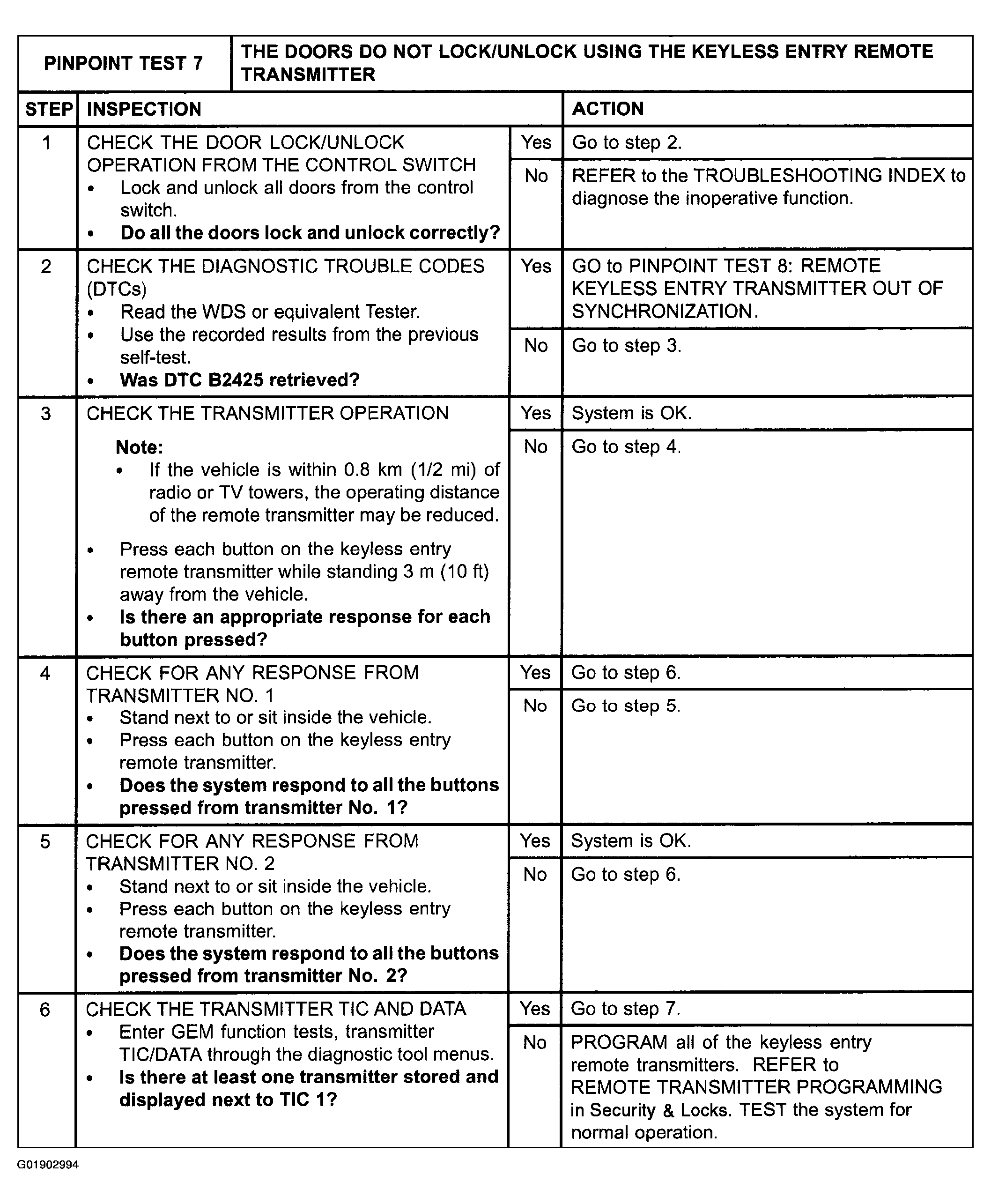

Fig 1: Pinpoint Test 7: Doors Do Not Lock/Unlock Using Keyless Entry Remote Transmitter (Steps 1-6)
Courtesy of MAZDA MOTORS CORP.

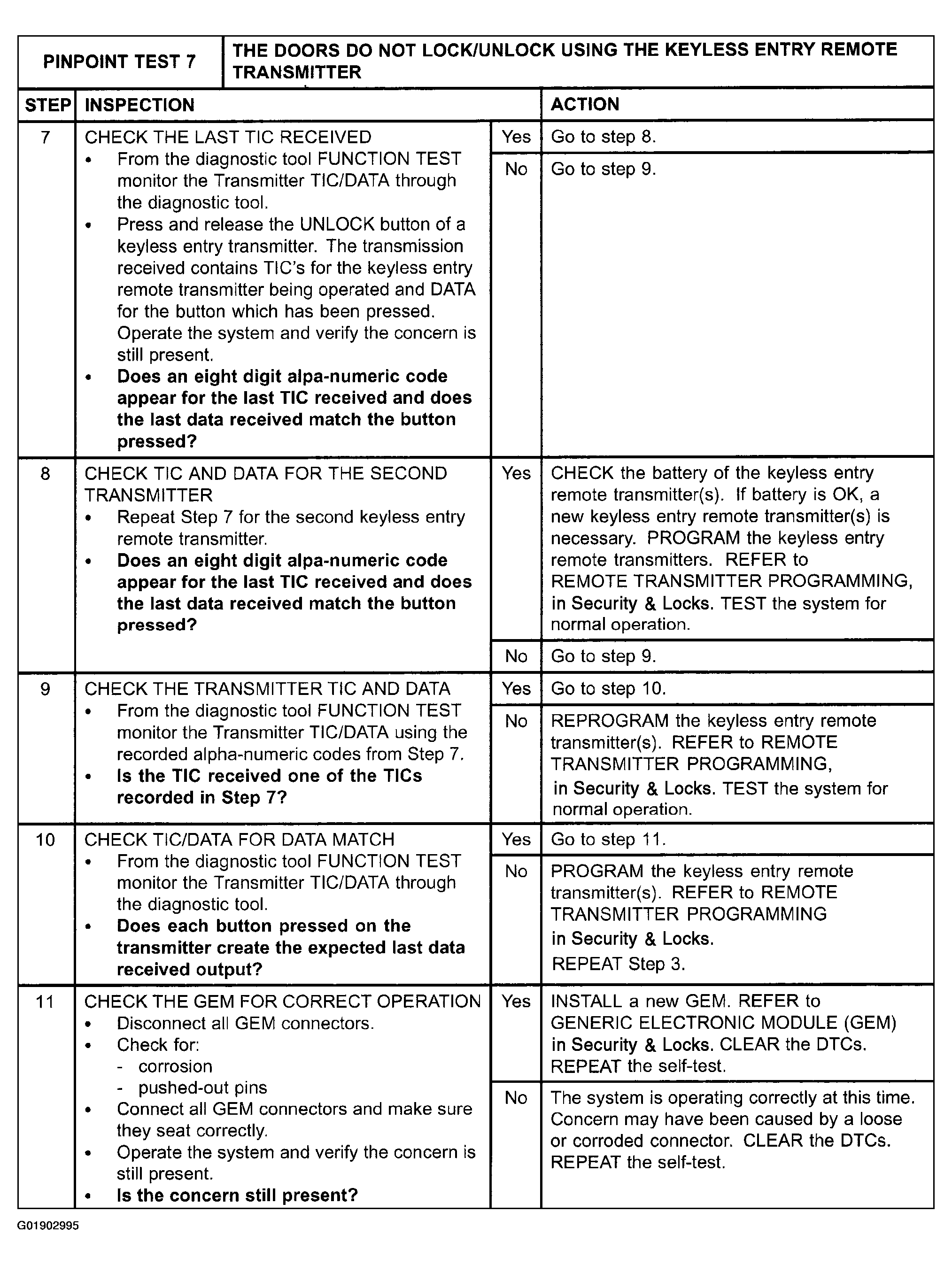

Fig 2: Pinpoint Test 7: Doors Do Not Lock/Unlock Using Keyless Entry Remote Transmitter (Steps 7-11)
