Pinpoint Test 5: A Single Door Lock Is Inoperative - Driver Door
WARNING: This page is about a different car, the 2003 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

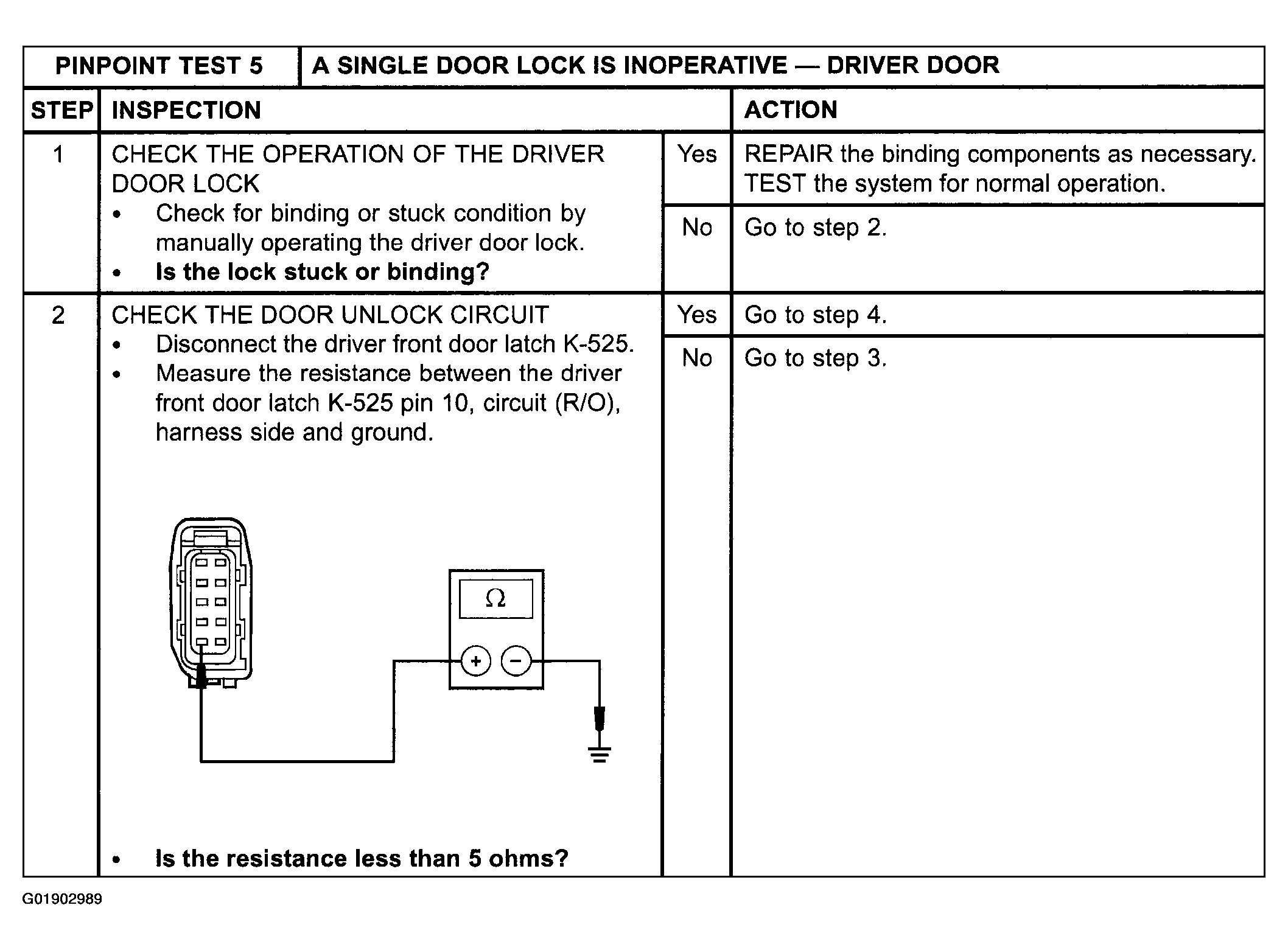

Fig 1: Pinpoint Test 5: A Single Door Lock Is Inoperative - Driver Door (Steps 1-2)
Courtesy of MAZDA MOTORS CORP.

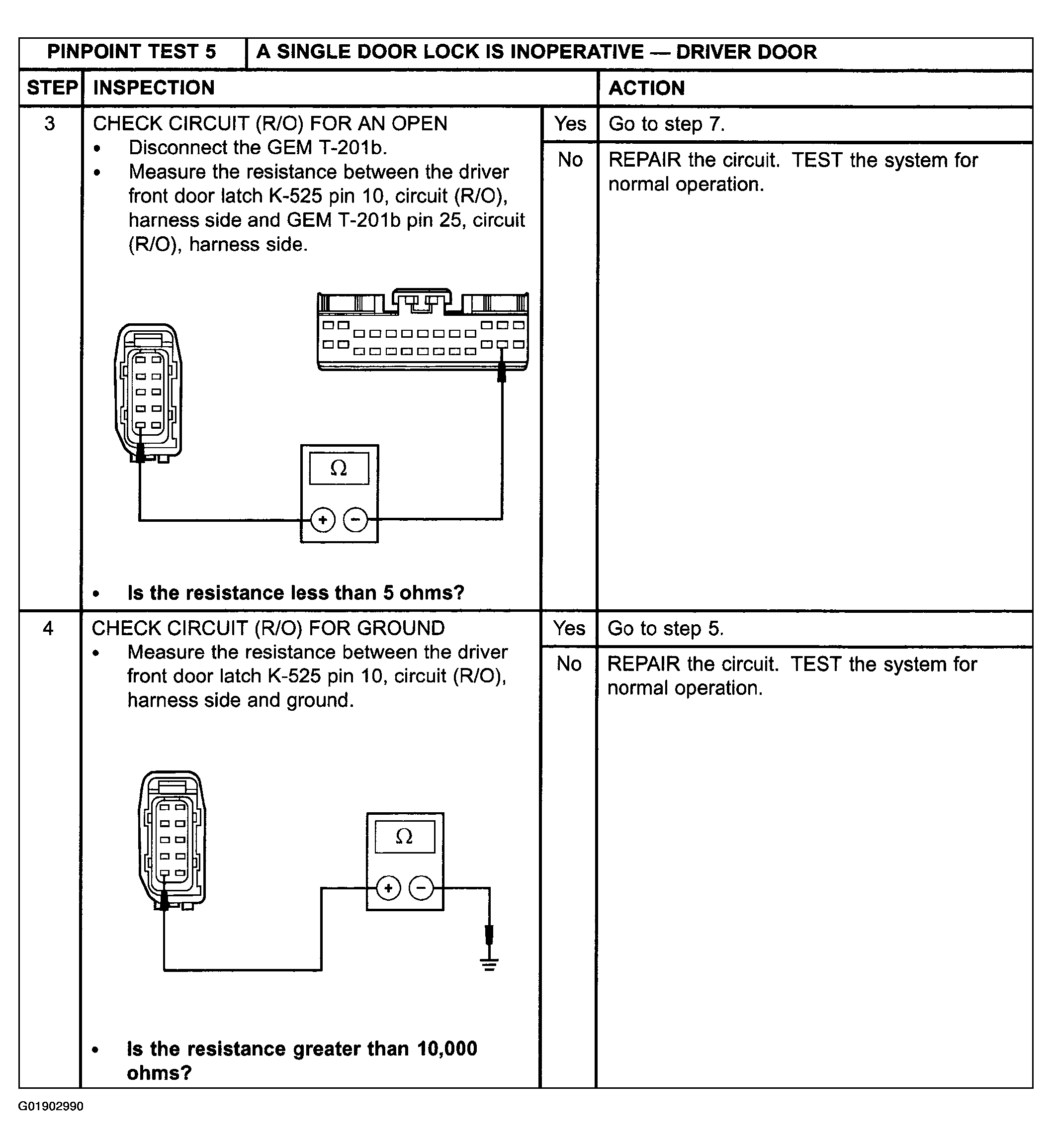

Fig 2: Pinpoint Test 5: A Single Door Lock Is Inoperative - Driver Door (Steps 3-4)
Courtesy of MAZDA MOTORS CORP.

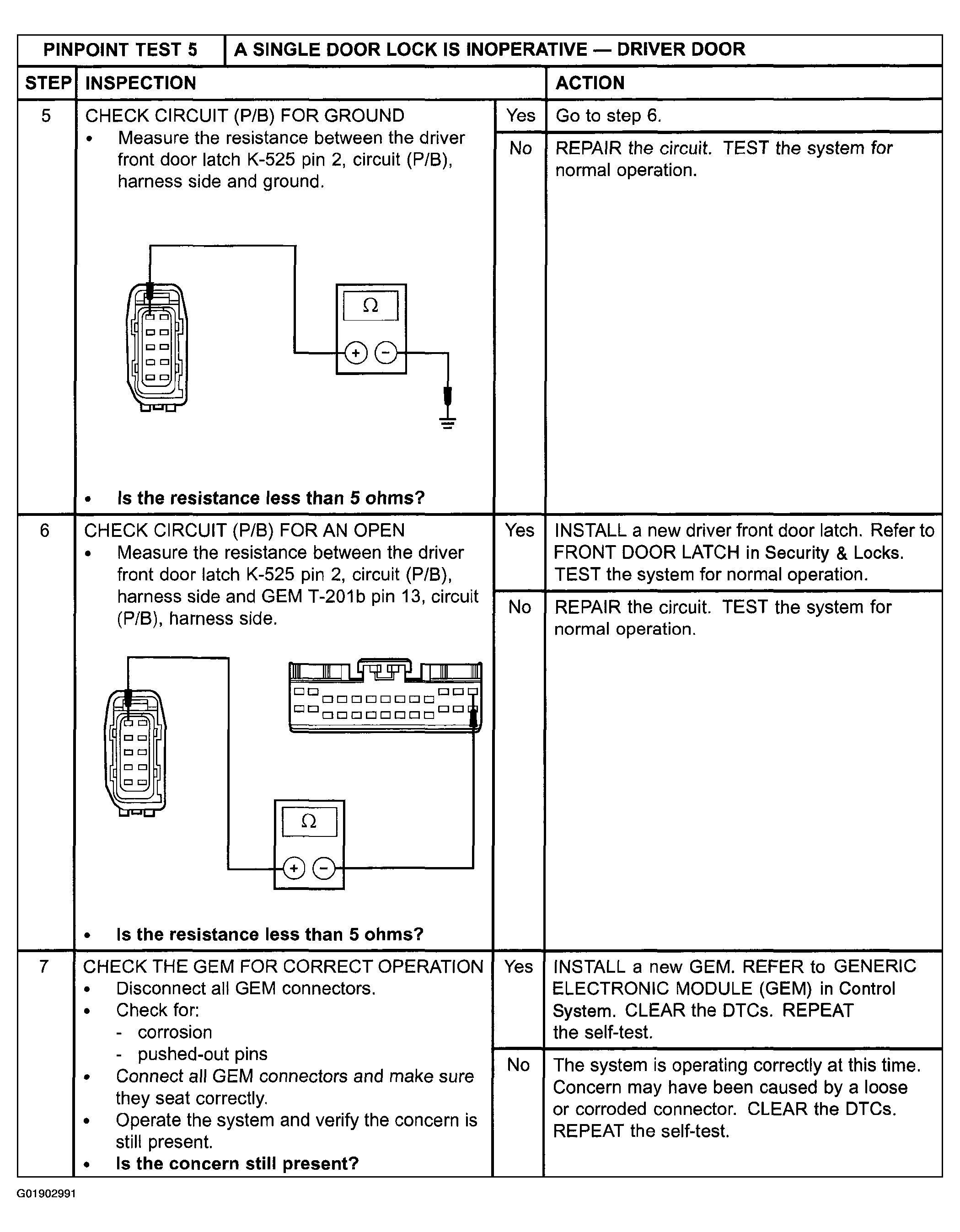

Fig 3: Pinpoint Test 5: A Single Door Lock Is Inoperative - Driver Door (Steps 5-7)
