Pinpoint Test 2: All Door Locks Are Inoperative From One Switch
WARNING: This page is about a different car, the 2003 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

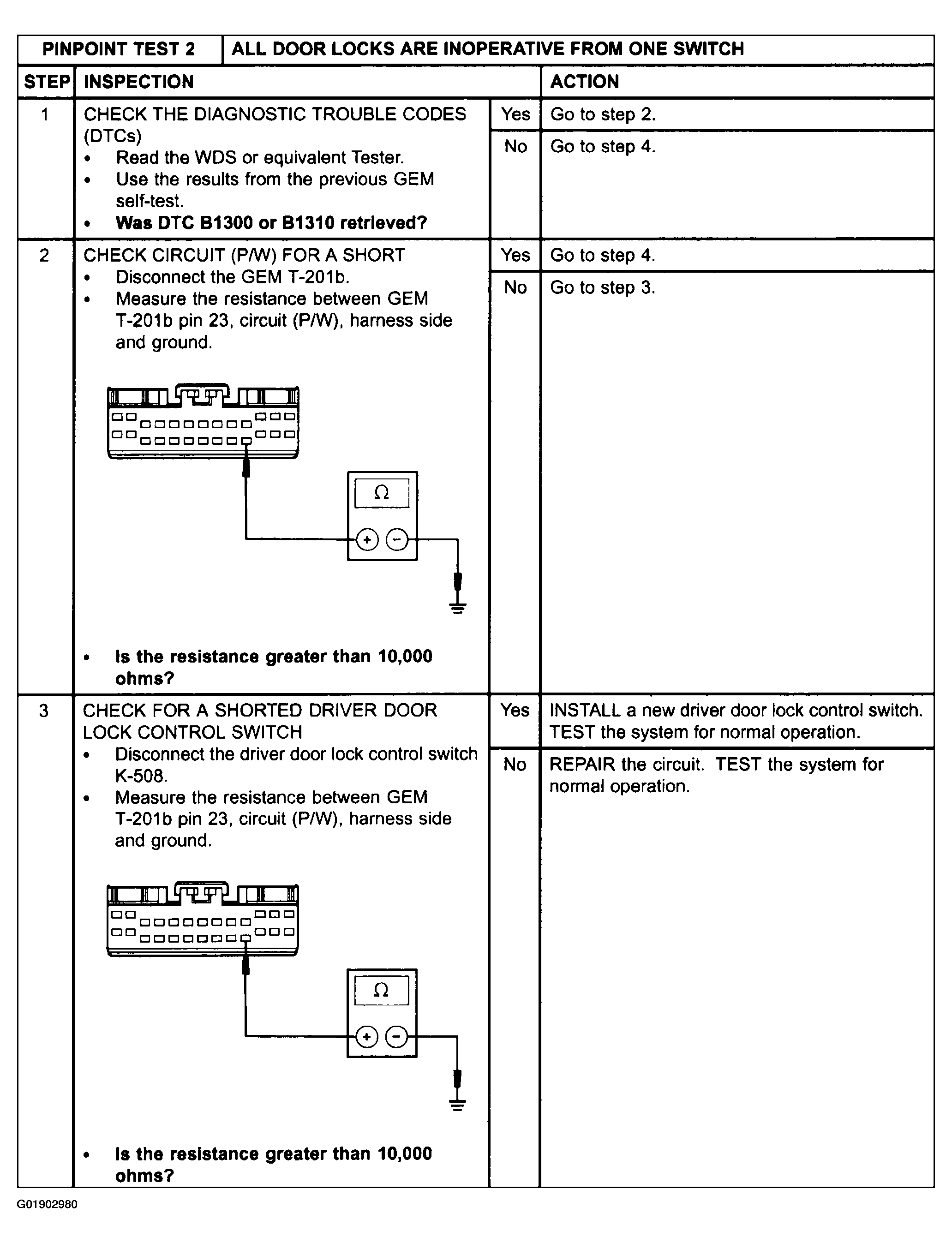

Fig 1: Pinpoint Test 2: All Door Locks Are Inoperative From One Switch (Steps 1-3)
Courtesy of MAZDA MOTORS CORP.

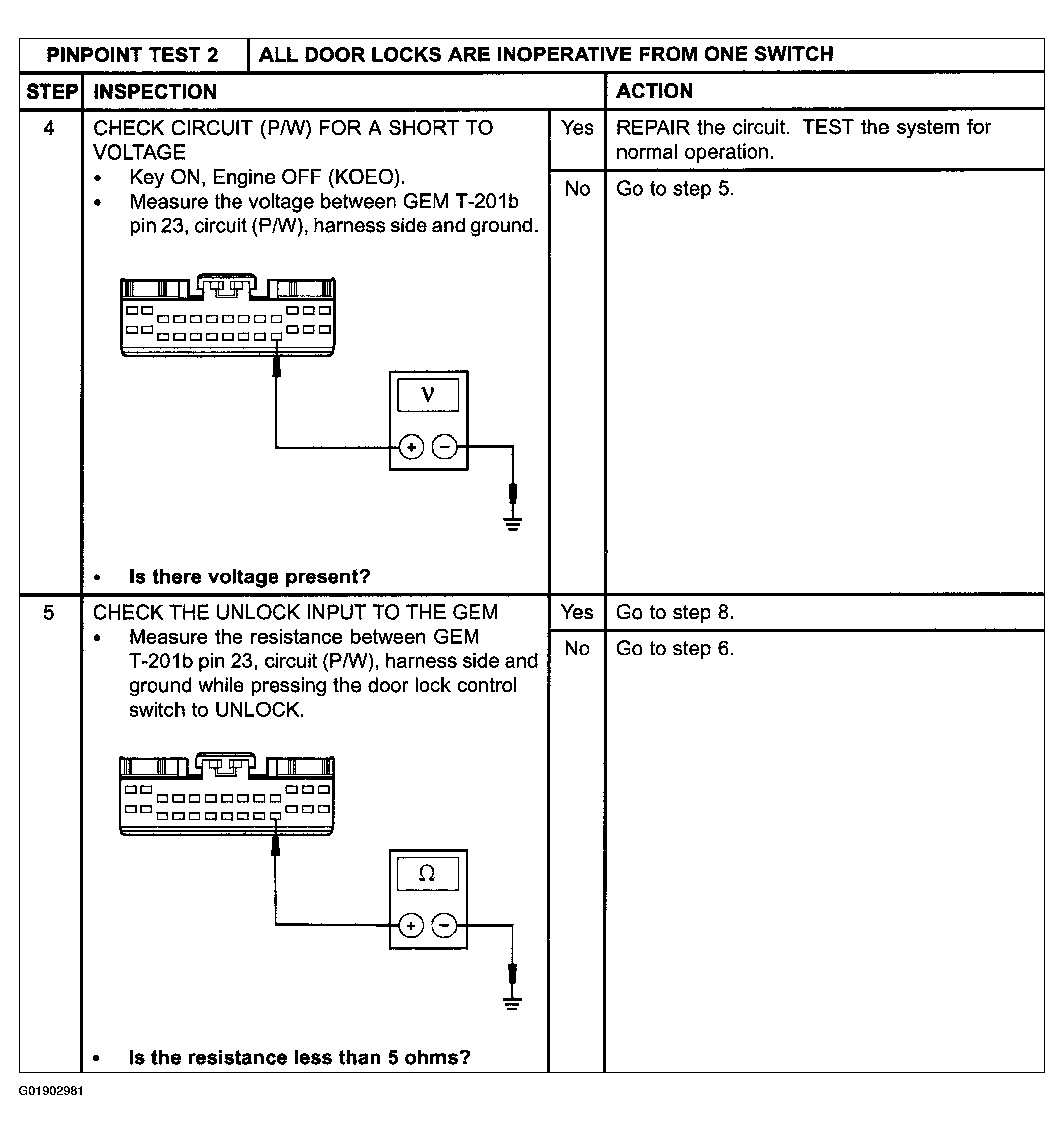

Fig 2: Pinpoint Test 2: All Door Locks Are Inoperative From One Switch (Steps 4-5)
Courtesy of MAZDA MOTORS CORP.

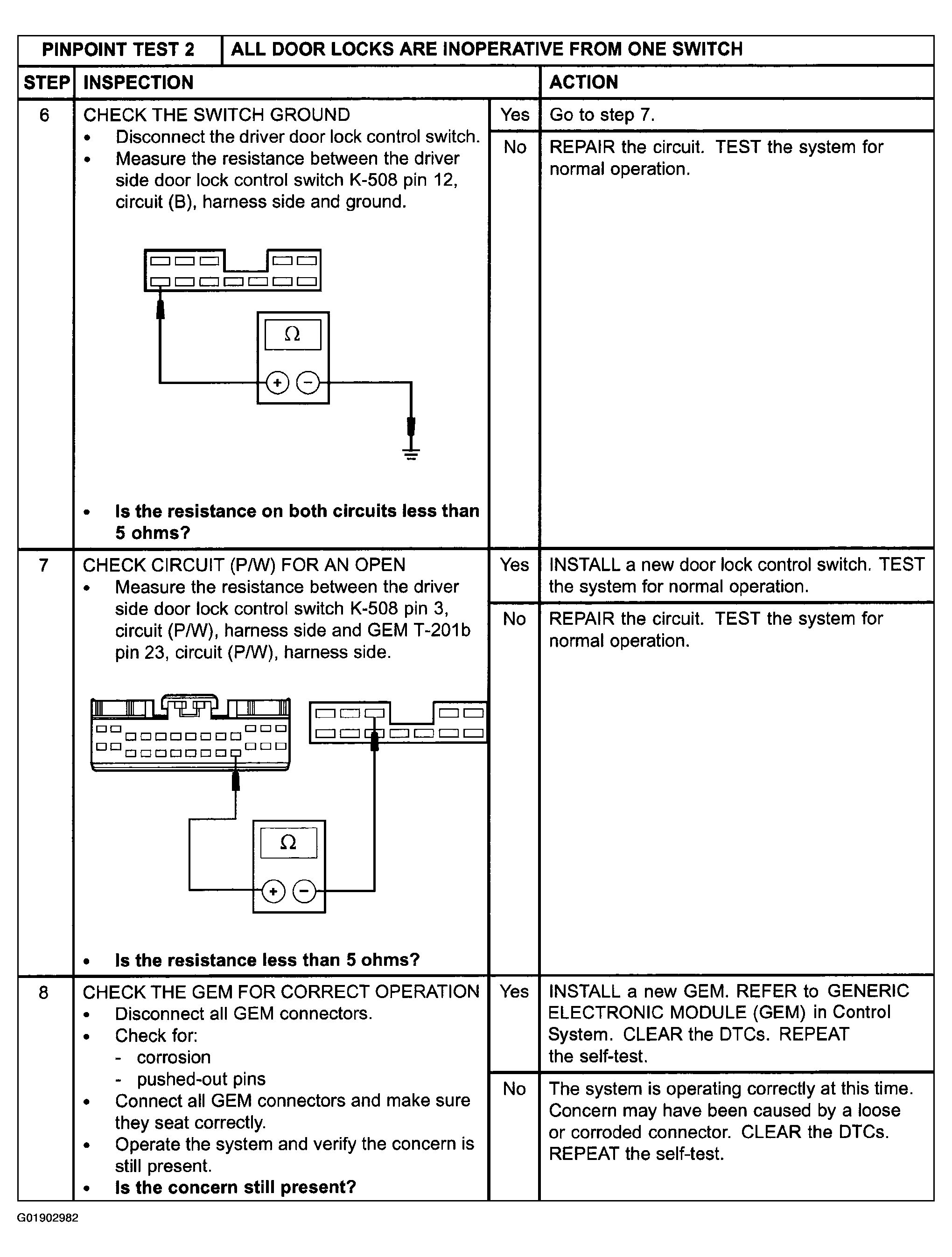

Fig 3: Pinpoint Test 2: All Door Locks Are Inoperative From One Switch (Steps 6-8)
