GEM Diagnostic Trouble Code (DTC) Index

WARNING: This page is about a different car, the 2003 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

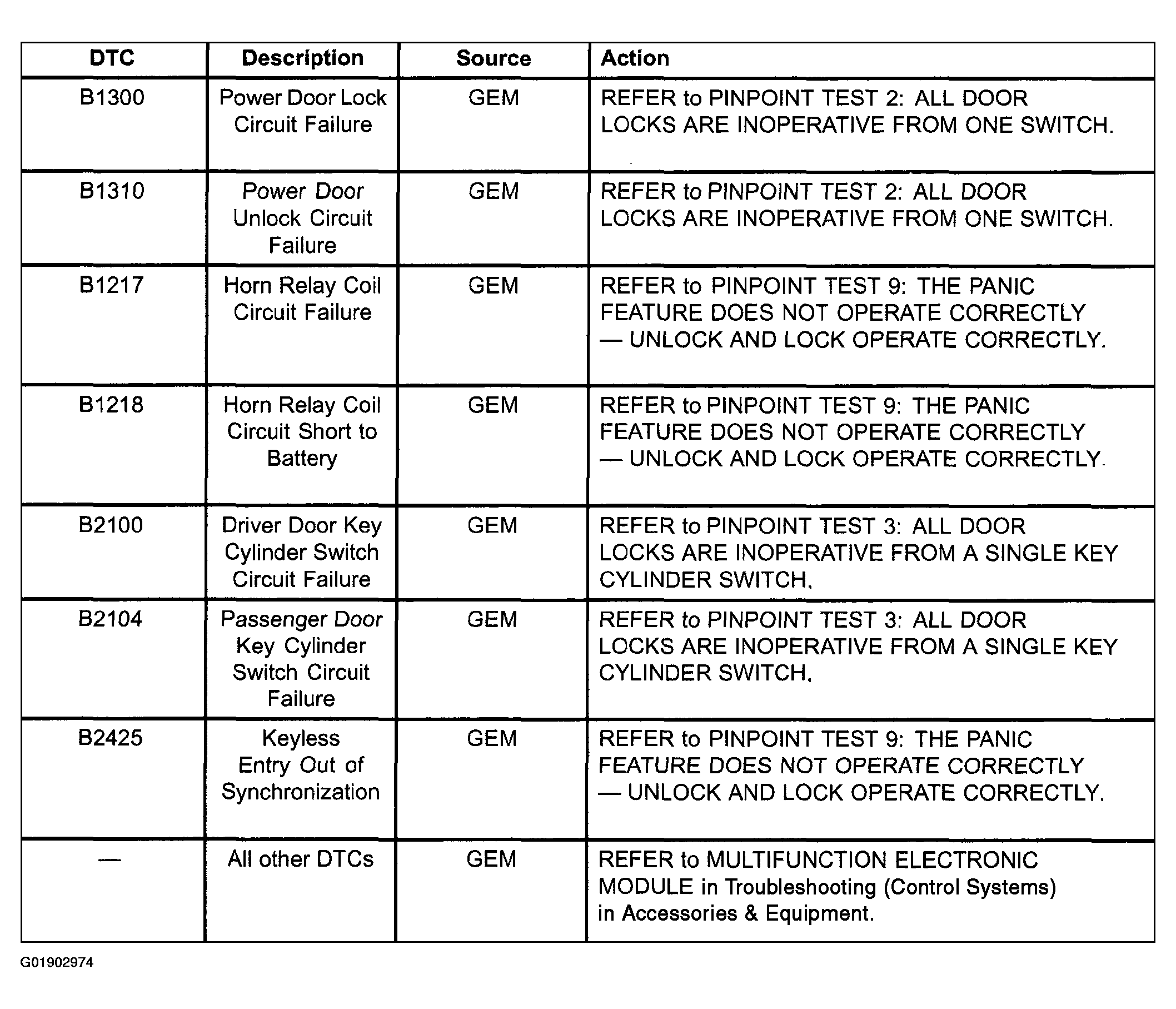

Fig 1: GEM Diagnostic Trouble Code (DTC) Index
G01902974Courtesy of MAZDA MOTORS CORP.
