PCM Diagnostic Trouble Code (DTC) Index

WARNING: This page is about a different car, the 2003 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

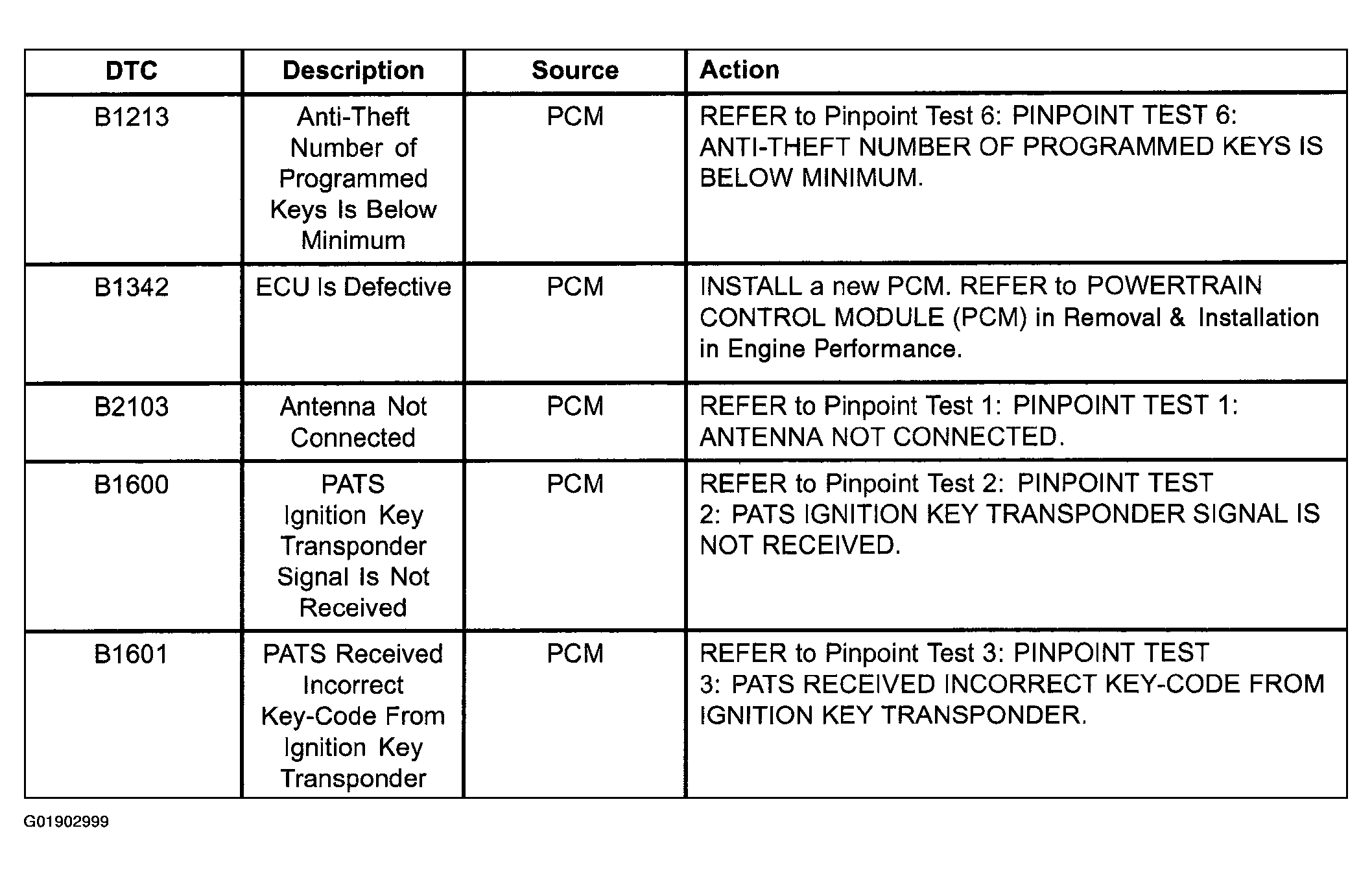

Fig 1: PCM DTC's B1213, B1342, B2103, B1600 & B1601
G01902999Courtesy of MAZDA MOTORS CORP.

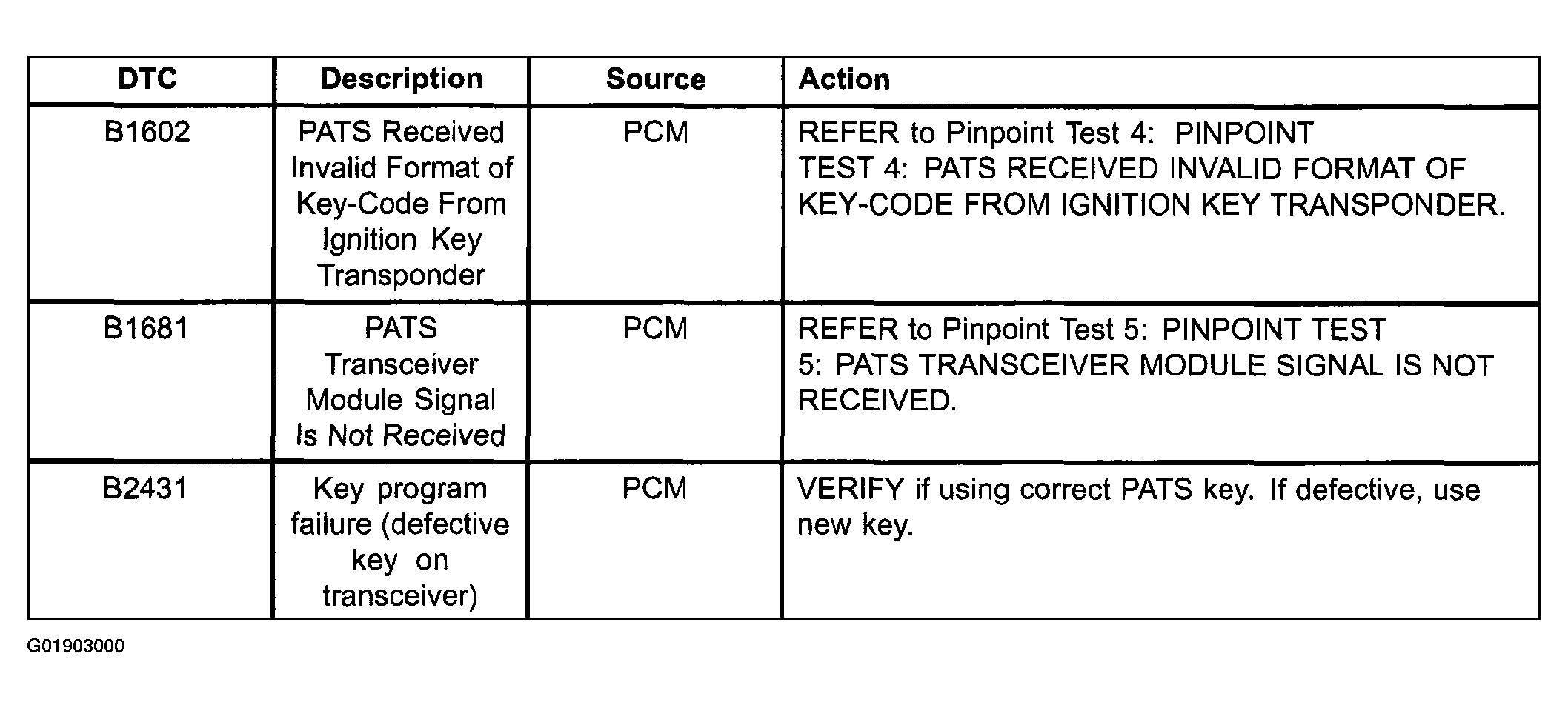

Fig 2: PCM DTC's B1602, B1681 & B2431
G01903000Courtesy of MAZDA MOTORS CORP.
