Trunk Lid Open Cancel Switch Inspection

WARNING: This page is about a different car, the 2003 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the trunk lid open cancel switch.
  2. Inspect for continuity between the trunk lid open cancel switch terminals using an ohmmeter.
    • If not as specified, replace the trunk lid open cancel switch.

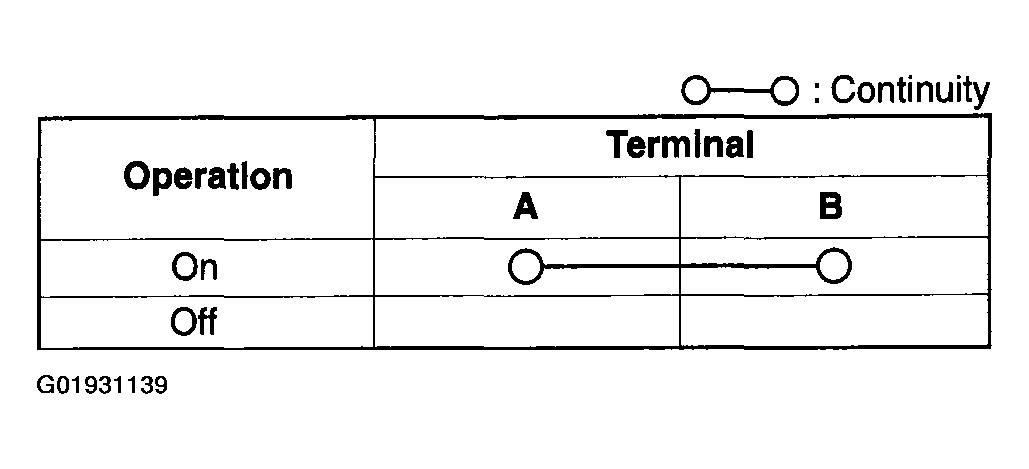

    Fig 1: Inspecting Trunk Lid Open Cancel Switch Continuity (1 Of 2)
    G01931139Courtesy of MAZDA MOTORS CORP.

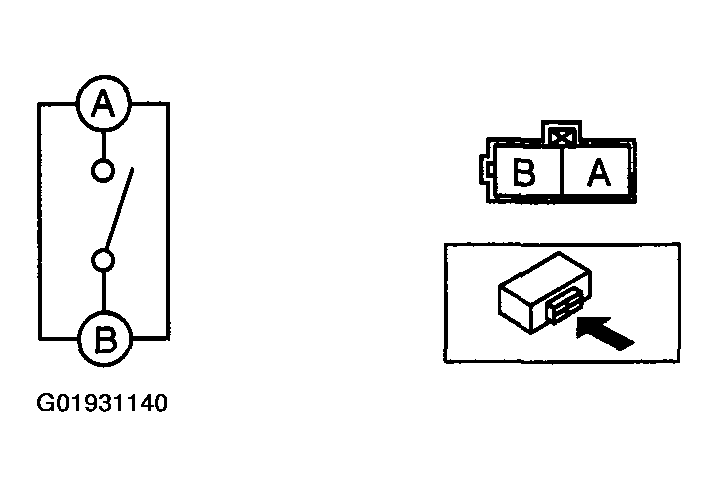

    Fig 2: Inspecting Trunk Lid Open Cancel Switch Continuity (2 Of 2)
    G01931140Courtesy of MAZDA MOTORS CORP.
