Theft-Deterrent Control Module Removal/Installation

WARNING: This page is about a different car, the 2003 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the center panel module. (See CENTER PANEL MODULE REMOVAL/INSTALLATION .)
  3. Remove in the order indicated in the figure below.

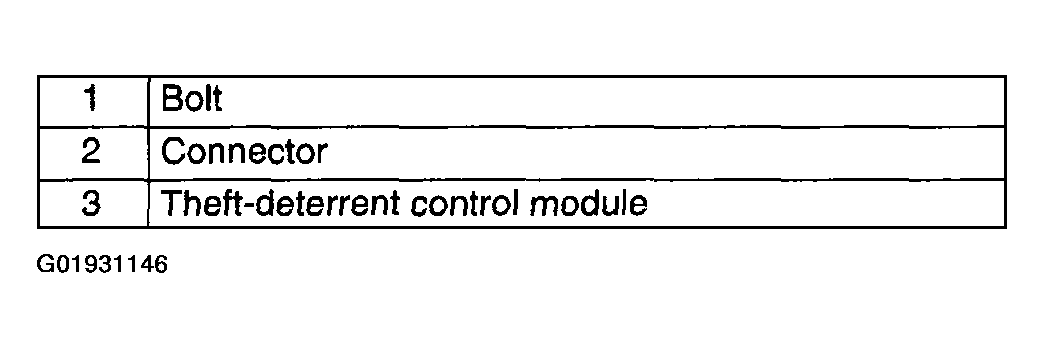

    Fig 1: Theft-Deterrent Control Module Removal Order Table
    G01931146Courtesy of MAZDA MOTORS CORP.

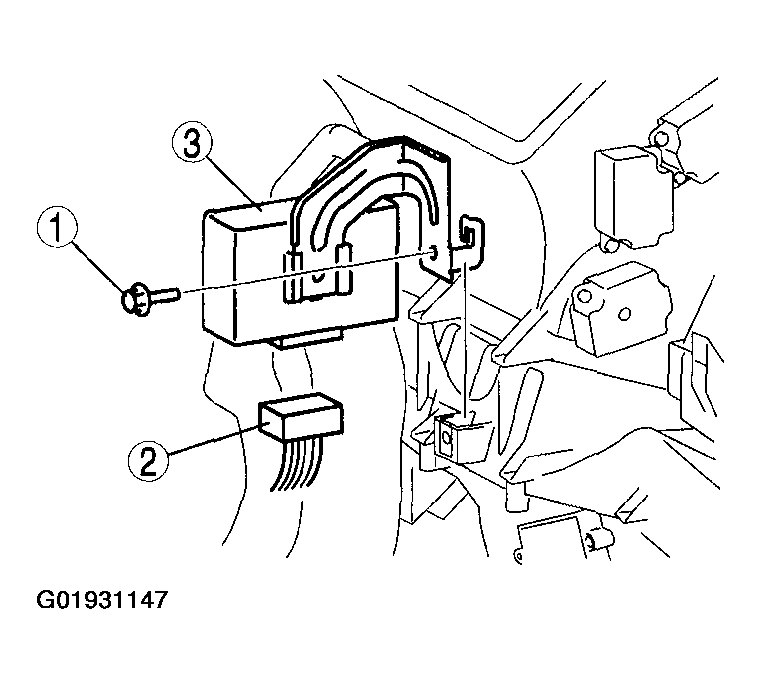

    Fig 2: Removing Theft-Deterrent Control Module
    G01931147Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
