Coil Removal/Installation: Notes

WARNING: This page is about a different car, the 2003 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • Do not remove the coil unless you are replacing it.
  • When only the coil is replaced, the immobilizer system reprogram procedure is not necessary.
  1. Disconnect the negative battery cable.
  2. Remove the column cover.
  3. Remove in the order indicated in the figure below.

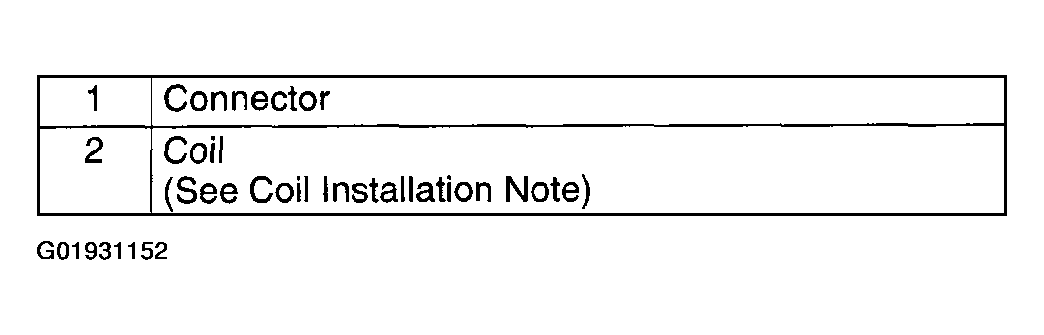

    Fig 1: Coils Removal Order Table
    G01931152Courtesy of MAZDA MOTORS CORP.

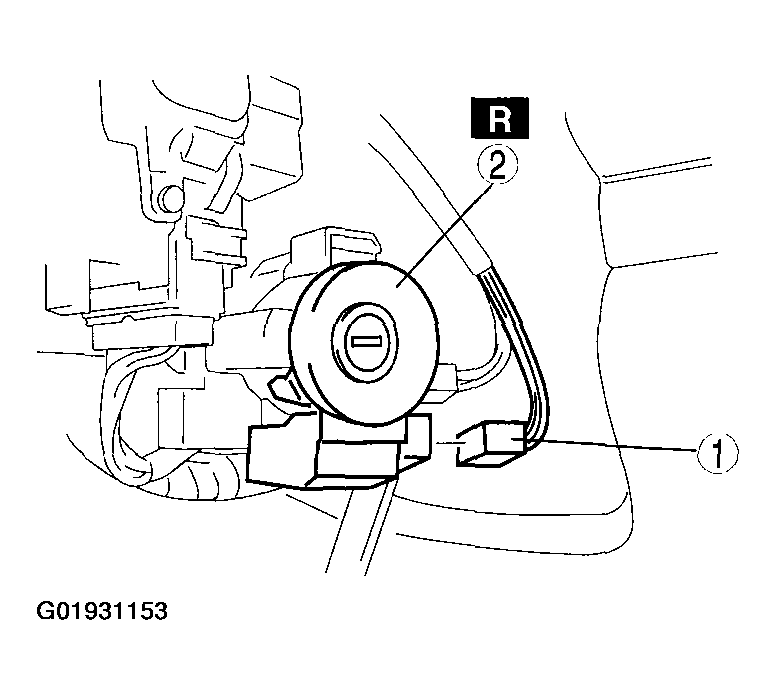

    Fig 2: Removing Coil
    G01931153Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
