Liftgate Lock Cylinder Switch Removal/Installation

WARNING: This page is about a different car, the 2004 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the liftgate lock cylinder switch connector.
  2. Disconnect the rods.
  3. Remove the nuts, and remove the liftgate lock cylinder.

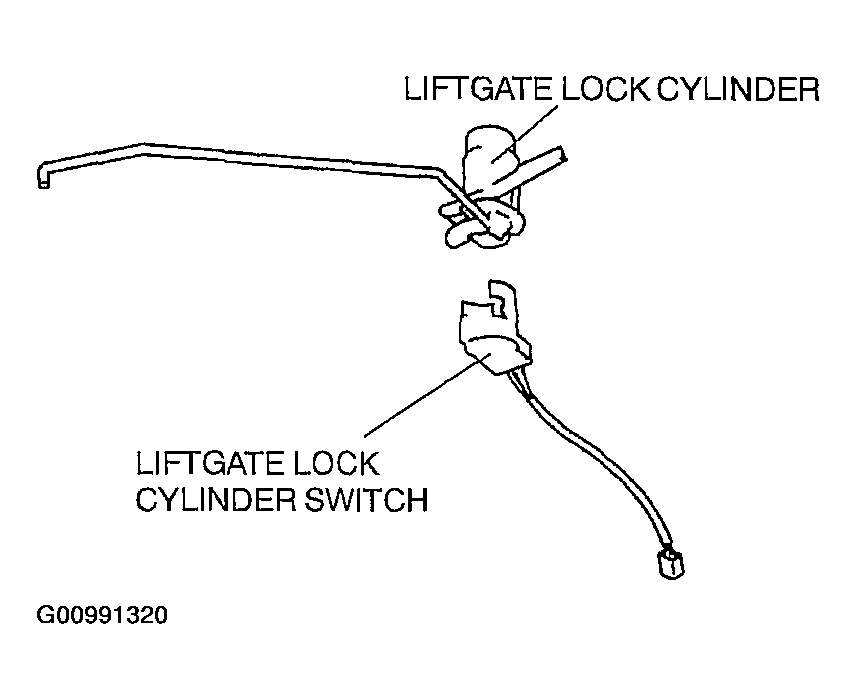

    Fig 1: Removing/Installing Liftgate Lock Cylinder Switch
    G00991320Courtesy of MAZDA MOTORS CORP.
  4. Remove the liftgate lock cylinder switch.
  5. Install in the reverse order of removal.
