Liftgate Lock And Opener Removal/Installation

WARNING: This page is about a different car, the 2004 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative cable.
  2. Remove the liftgate lower trim. (See LIFTGATE LOWER TRIM REMOVAL/INSTALLATION .)
  3. To remove the liftgate outer handle, remove the rear finisher.
  4. Remove the order indicated in the figure.

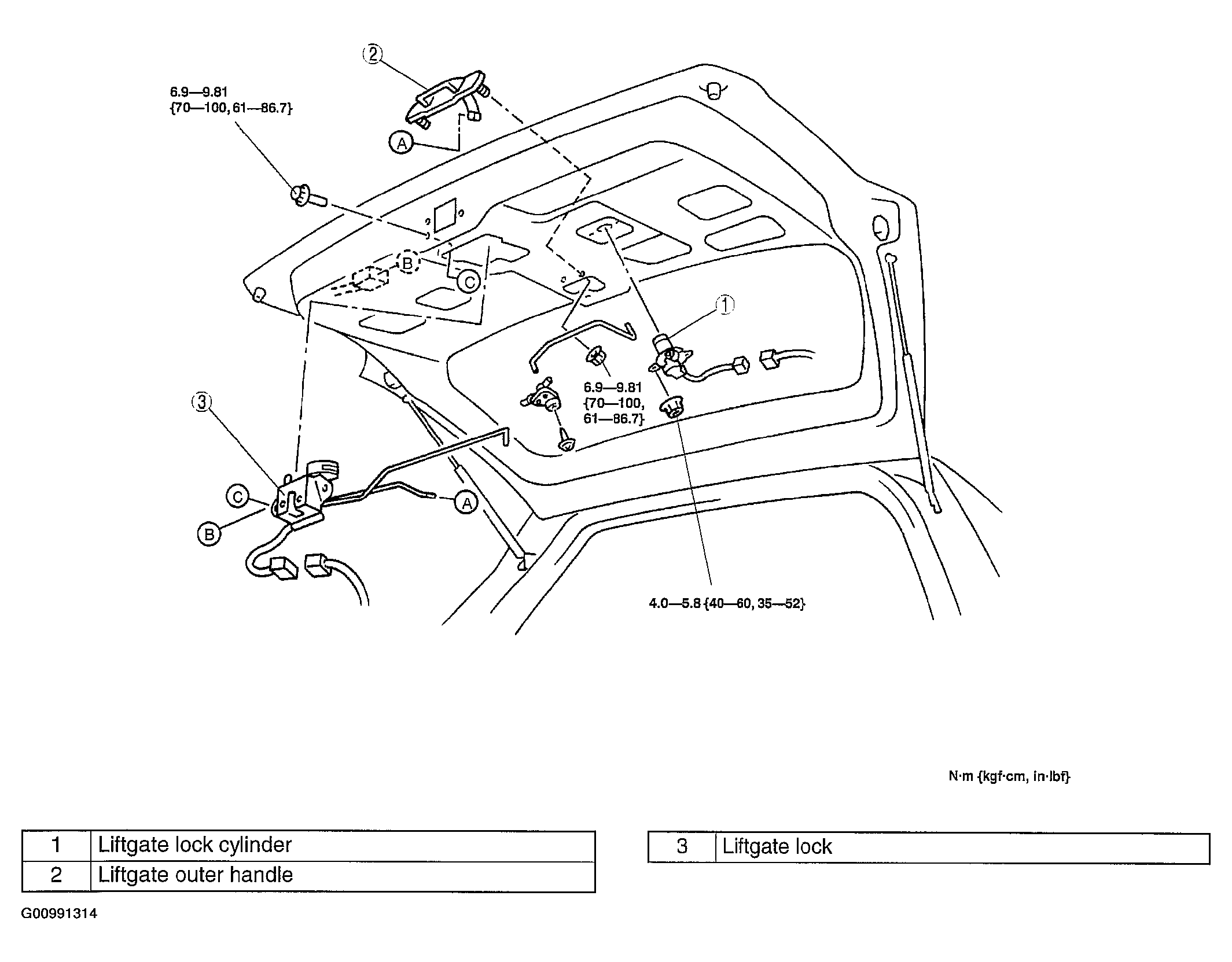

    Fig 1: Removing/Installing Liftgate Lock & Opener
    G00991314Courtesy of MAZDA MOTORS CORP.
  5. Install in the reverse order of removal.
