Keyless Control Module Disassembly/Assembly: Notes

WARNING: This page is about a different car, the 2004 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disassemble in the order indicated in the figures.

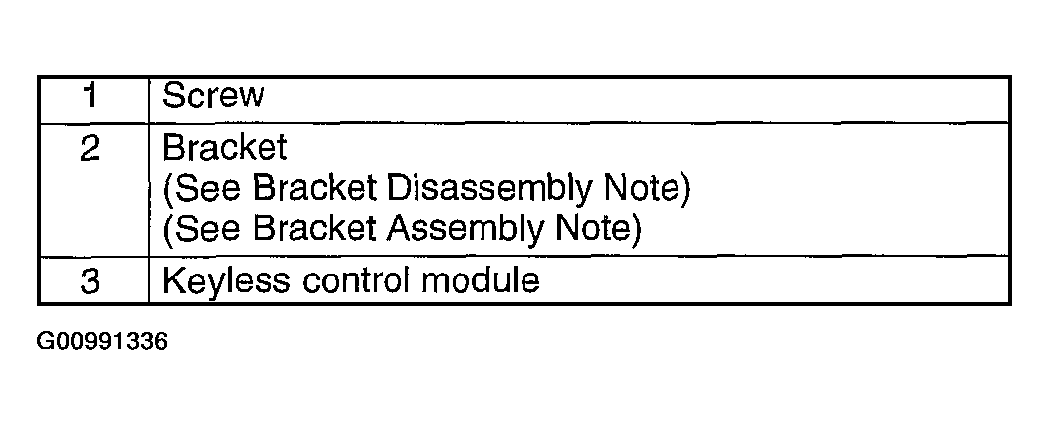

    Fig 1: Disassembling/Assembling Keyless Control Module (Legend)
    G00991336Courtesy of MAZDA MOTORS CORP.

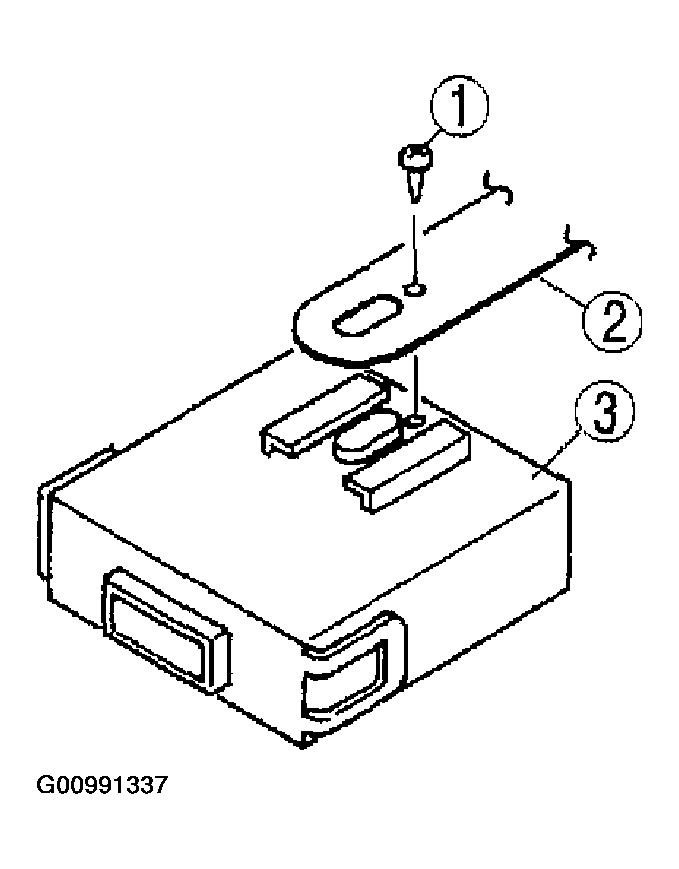

    Fig 2: Disassembling/Assembling Keyless Control Module
    G00991337Courtesy of MAZDA MOTORS CORP.
  2. Assemble in the reverse order of disassembly.
