Front Door Lock-Link Switch Inspection

WARNING: This page is about a different car, the 2004 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

The front door lock-link switch is together with the front door lock actuator.

Disconnect the front door lock actuator connector.
Inspect for continuity between the front door lock-link switch terminals using an ohmmeter.
- If not as specified, replace the front door lock actuator.

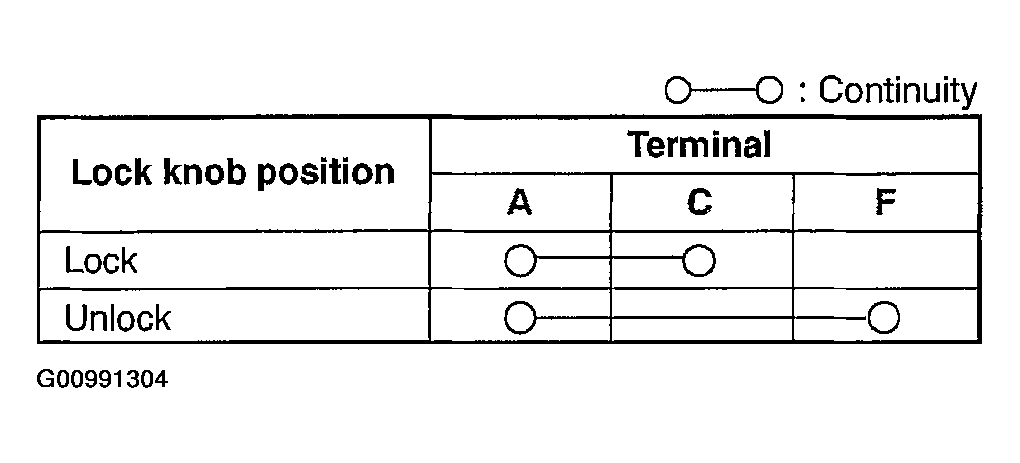

Fig 1: Front Door Lock-Link Switch Continuity Specifications - Driver's Side

Courtesy of MAZDA MOTORS CORP.

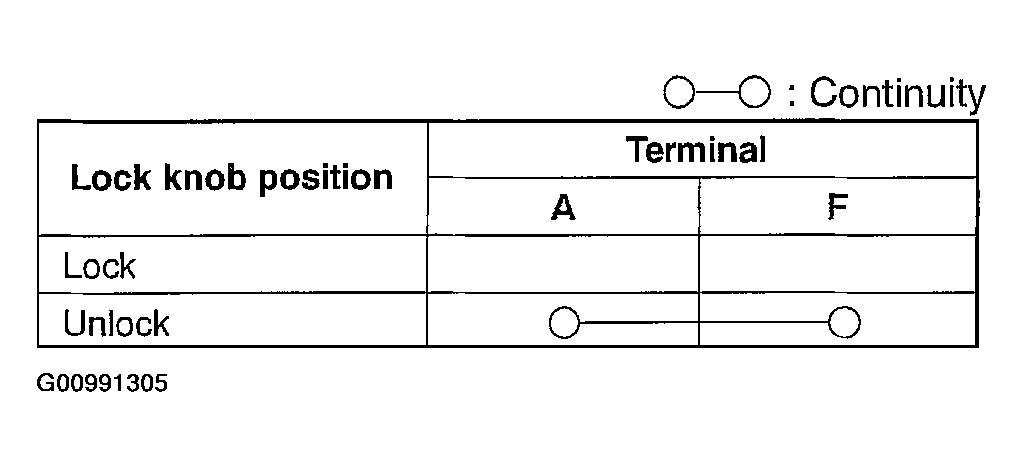

Fig 2: Front Door Lock-Link Switch Continuity Specifications - Passenger's Side (With Theft-Deterrent System)

Courtesy of MAZDA MOTORS CORP.

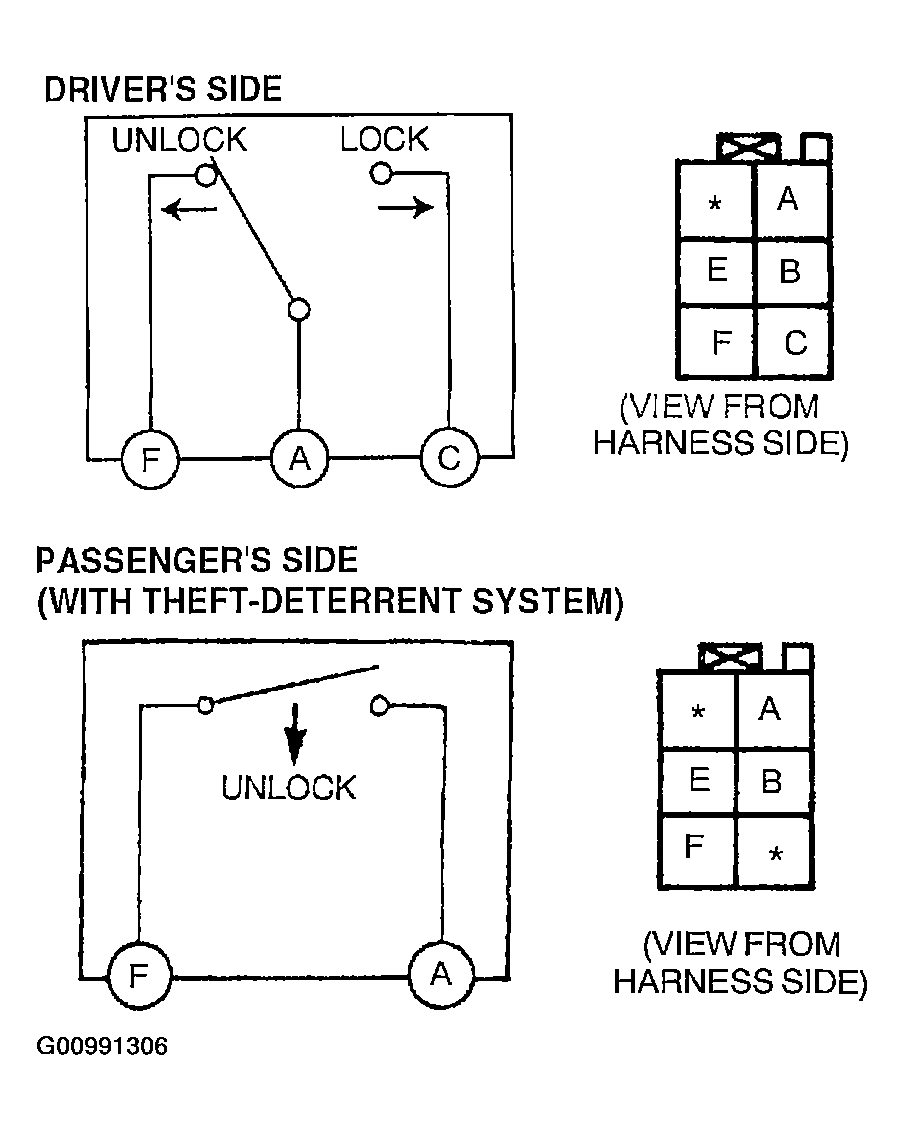

Fig 3: Identifying Front Door Lock-Link Switch Terminals

Courtesy of MAZDA MOTORS CORP.
