Home >> Mazda >> 2007 >> B3000 Base, Standard >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Crankshaft Position (CKP) Sensor Removal / Installation - 2.3L >> Notes

Crankshaft Position (CKP) Sensor Removal / Installation - 2.3L: Notes

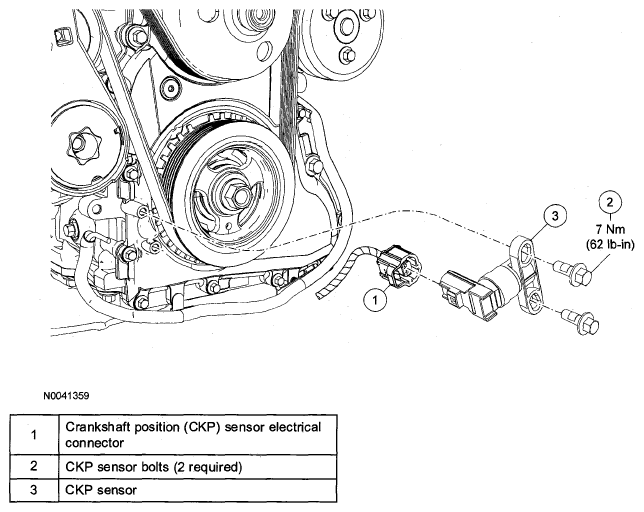

Fig 1: Crankshaft Position (CKP) Sensor Replacement Components With Torque Specifications - 2.3L

G04930171

Courtesy of MAZDA MOTORS CORP.
