Seat Front Removal / Installation: Installation

All seats

1. Position the seat into the vehicle.

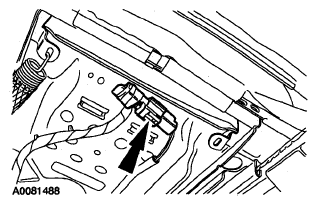

   Fig 1: Locating Safety Belt Pretensioner Electrical Connector


2. Connect the safety belt pretensioner electrical connector.

   60 percent seat

   Fig 2: Locating Strap


   NOTE:

   • The 2-door, regular cab and the 4-door cab plus safety belts route differently, make sure of correct routing.
3. Route the center safety belt buckle through the locating strap on the side of the seat.
4. Install the front bolts.
   • Tighten to 55 Nm {5.6 kgf-m, 41 ft-lbf}.
5. Move seat to its forward most position.
6. Install the rear bolts.
   • Tighten to 55 Nm {5.6 kgf-m, 41 ft-lbf}.
7. Install the safety belt buckle anchor bolt.
   • Tighten to 40 Nm {3.1 kgf-m, 30 ft-lbf}.
   Fig 3: Locating Safety Belt Buckle Anchor Bolt Cover


8. Slide the safety belt buckle bolt covers on the safety belt and position in place.

   40 percent seat

9. Install the front bolts.
   • Tighten to 55 Nm {5.6 kgf-m, 41 ft-lbf}.
10. Position the seat to its forward most position.
11. Install the rear bolts.
    • Tighten to 55 Nm {5.6 kgf-m, 41 ft-lbf}.

    All seats

12. Repower the SRS. See DEPOWERING AND REPOWERING , .
13. Make sure the safety belts and buckles are accessible to the occupants after installation.
