Home >> Mazda >> 2007 >> B3000 Base, Standard >> Repair and Diagnosis >> Body & Frame >> Seats >> Seat Backrest Front - 60 Percent Bench Disassembly / Assembly >> Notes

Seat Backrest Front - 60 Percent Bench Disassembly / Assembly: Notes

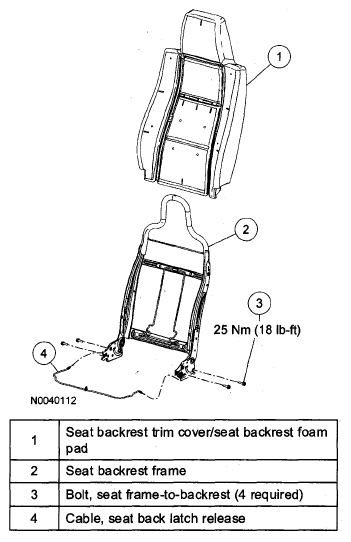

Fig 1: Front Seat Backrest Replacement Components With Torque Specifications - 60 Percent Bench

G04931149
