Main Light Switch: Notes

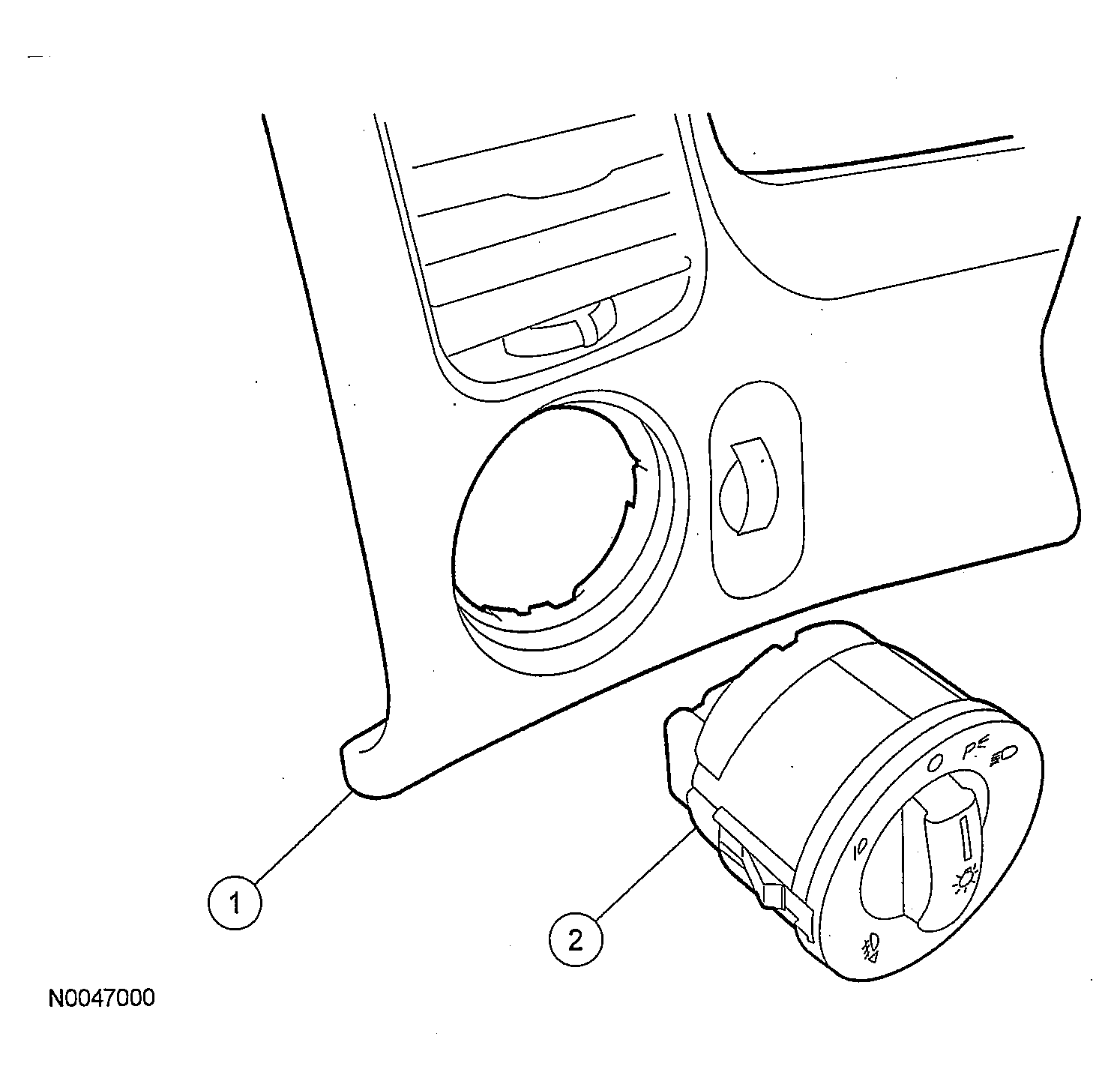

Fig 1: Main Light Switch

G00455476

Courtesy of MAZDA MOTORS CORP.

MAIN LIGHT SWITCH COMPONENTS

Item	Description
1	Instrument panel finish panel
2	Headlamp switch
