MULTIFUNCTION Switch: Notes

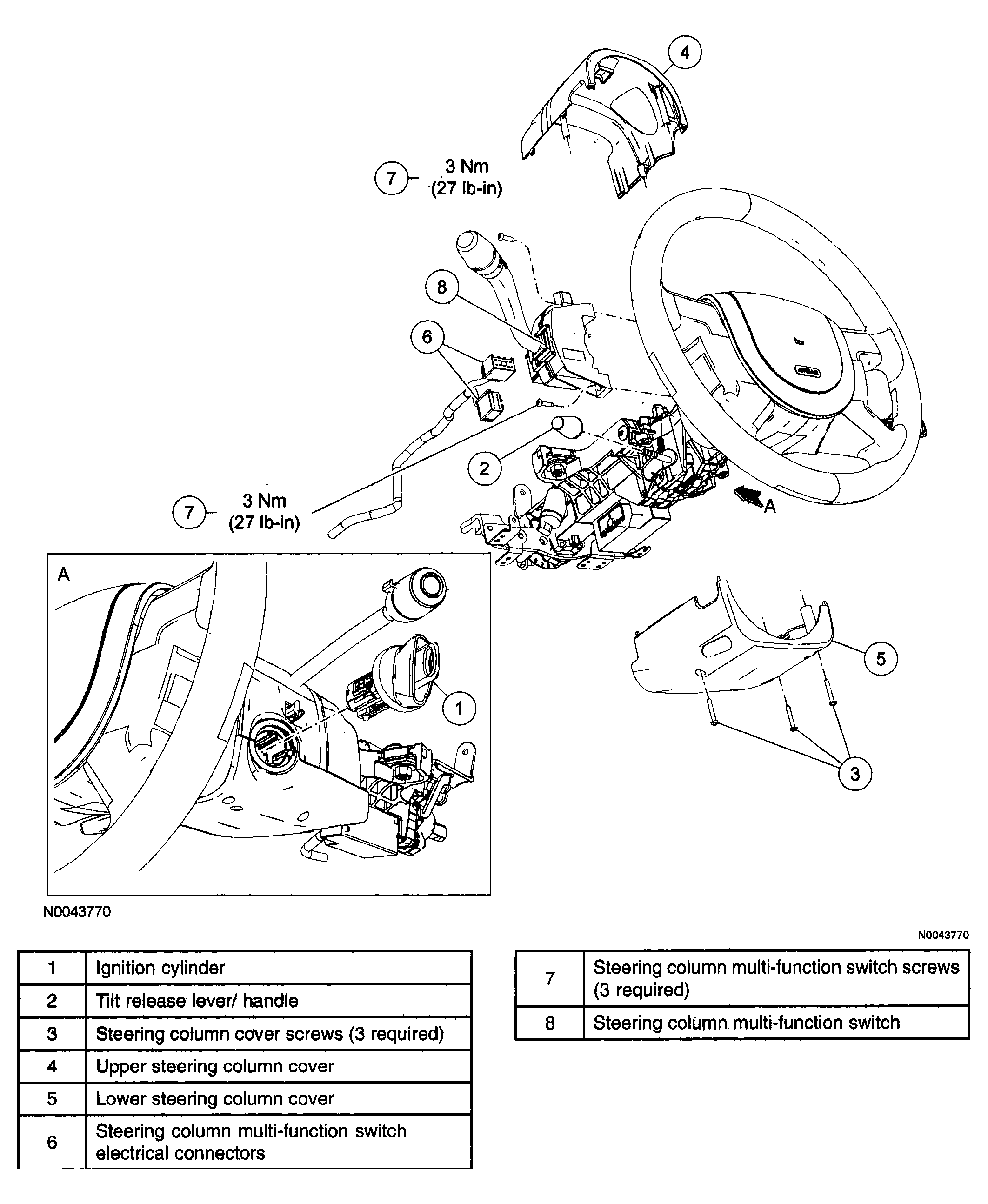

Fig 1: Removing/Installing Multifunction Switch With Torque Specifications
G04310515Courtesy of MAZDA MOTORS CORP.
