Cruise Control Actuator Cable Removal / Installation: Notes

NOTE:

• 4.0L shown, others similar.

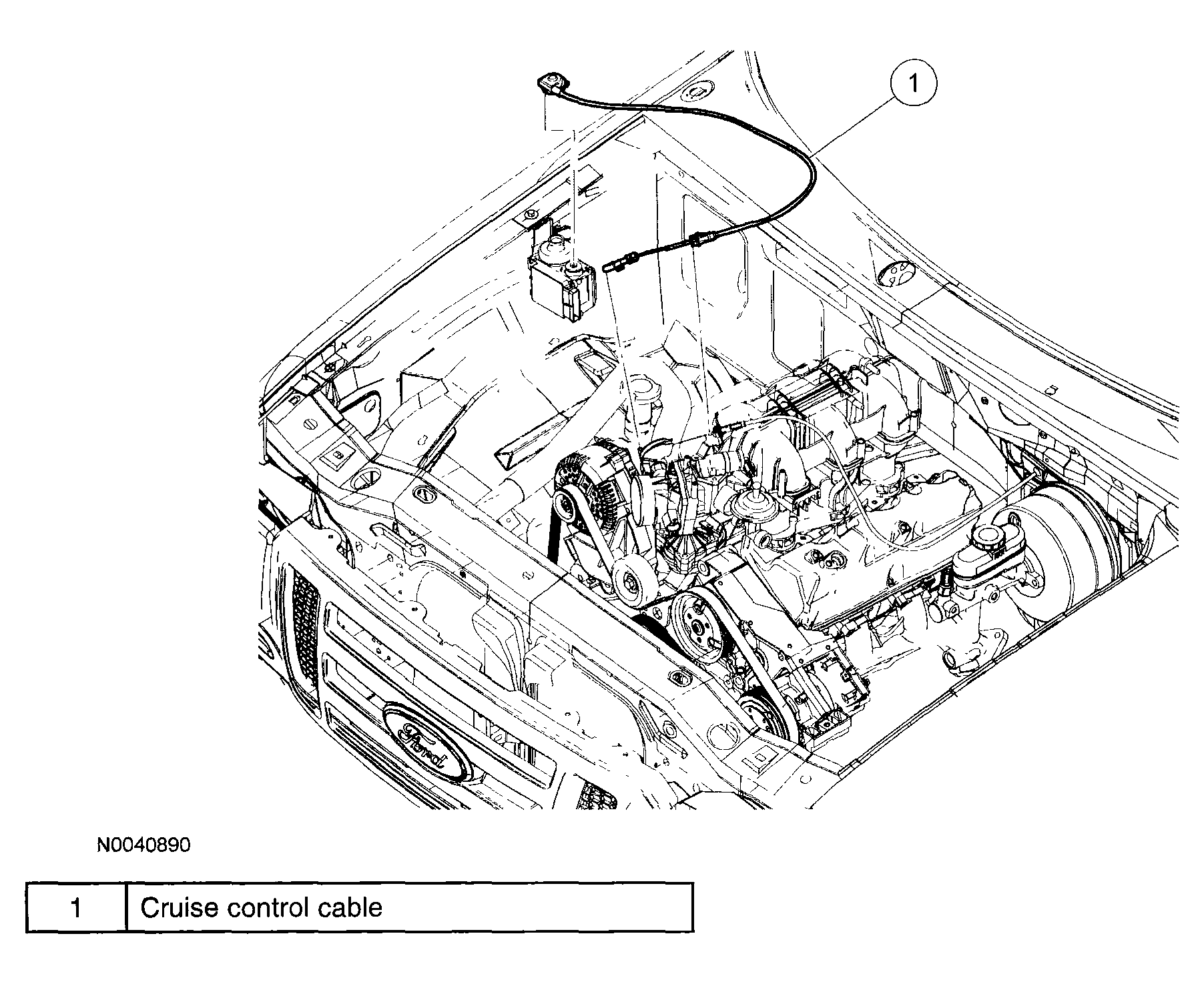

Fig 1: Removing/Installing Cruise Control Actuator Cable

Courtesy of MAZDA MOTORS CORP.

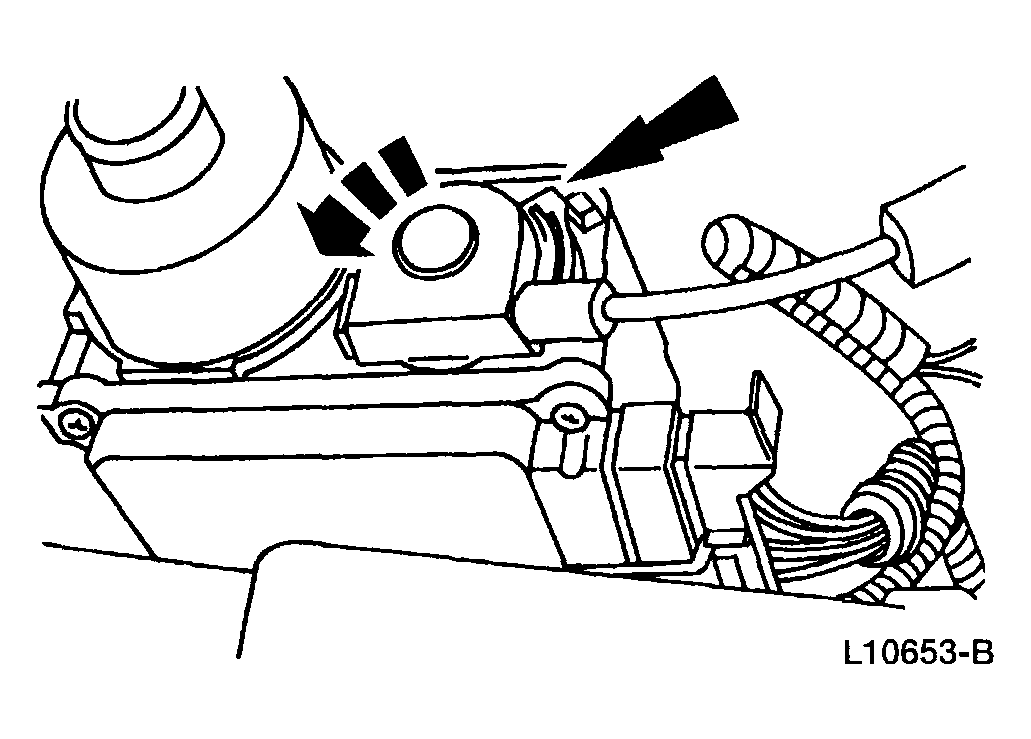

Fig 2: Removing Cruise Control Cable Cap From Cruise Control Servo

Courtesy of MAZDA MOTORS CORP.

1. Remove the cruise control cable cap from the cruise control servo.
   • Push in the locking arm on the cruise control cable cap then rotate the cap counterclockwise.
   Fig 3: Pressing Spring Retainer

   Courtesy of MAZDA MOTORS CORP.
2. Remove the cruise control cable.
   • Press the spring retainer.
   • Slide the core wire end out of the cruise control servo pulley and remove the cruise control cable.
