Restraints Control Module (RCM): Notes

NOTE:

Vehicle with consolette tray shown.

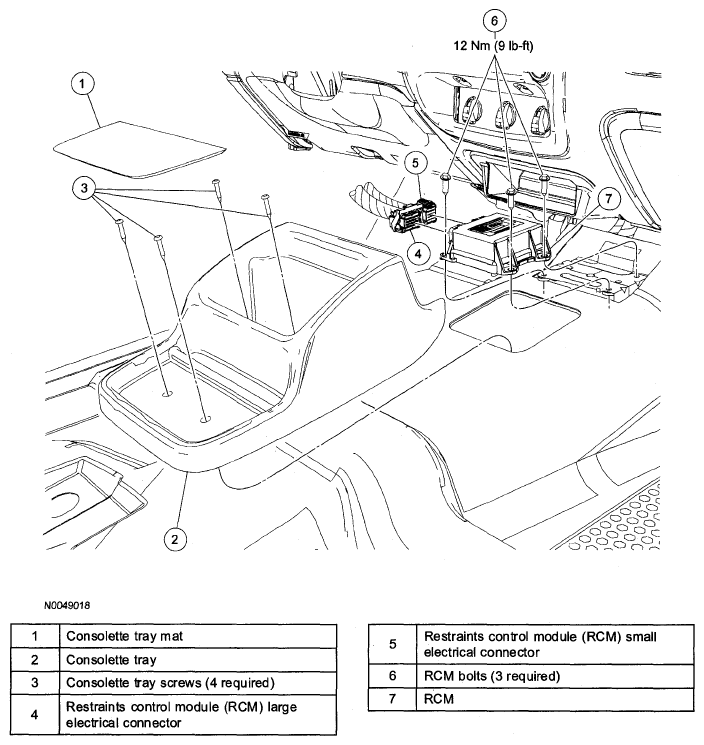

Fig 1: Restraints Control Module Replacement Components With Torque Specifications

G04930860

Courtesy of MAZDA MOTORS CORP.
