Speed Control Servo Connector End View (C122)

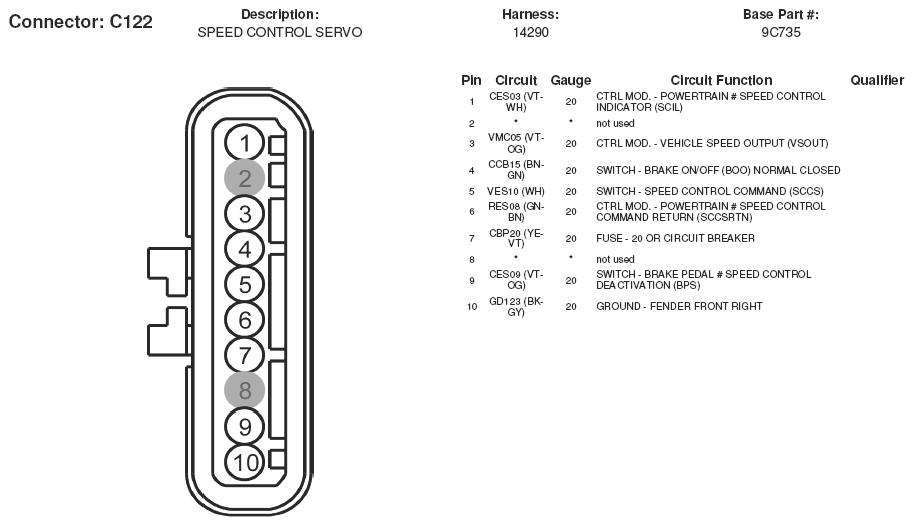

Fig 1: Speed Control Servo Connector End View (C122)

G05169145

Courtesy of FORD MOTOR CO.
