Power Steering Pressure Switch Connector End View (C1121)

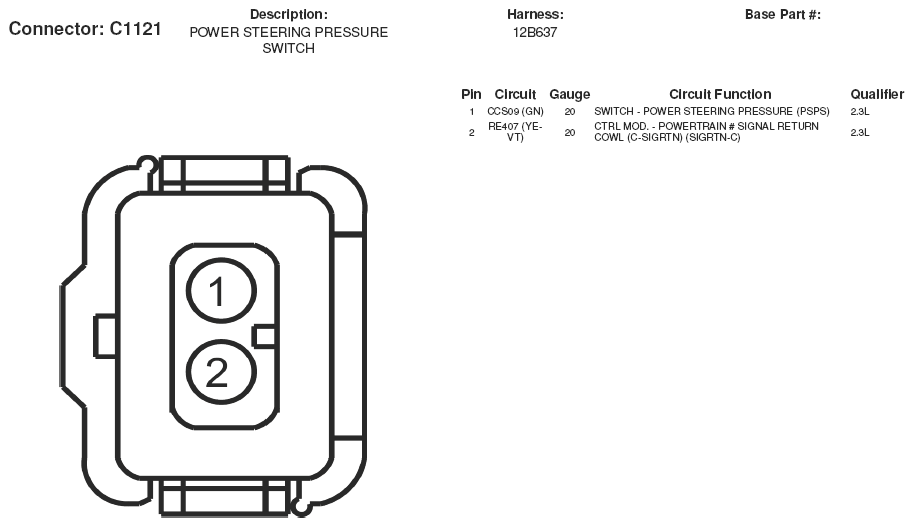

Fig 1: Power Steering Pressure Switch Connector End View (C1121)

G05169291

Courtesy of FORD MOTOR CO.
