Master Window Adjust Switch Connector End View (C504)

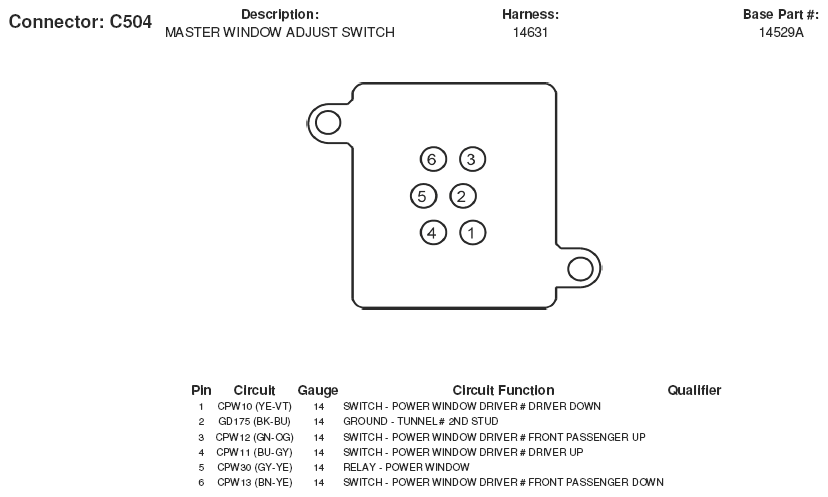

Fig 1: Master Window Adjust Switch Connector End View (C504)

G05169248

Courtesy of FORD MOTOR CO.
