Main Light Switch Connector End View (C205)

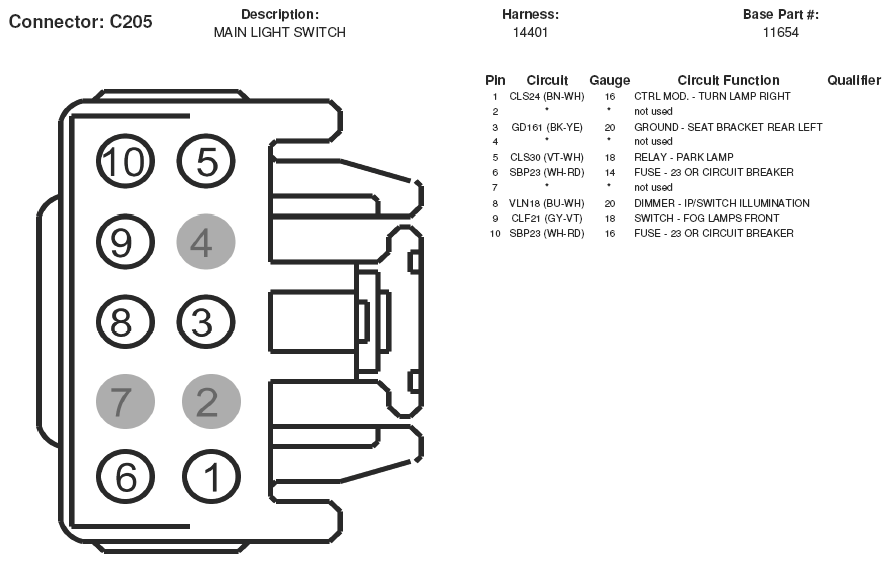

Fig 1: Main Light Switch Connector End View (C205)

G05169181

Courtesy of FORD MOTOR CO.
