Audio Unit Connector End View (C290A)

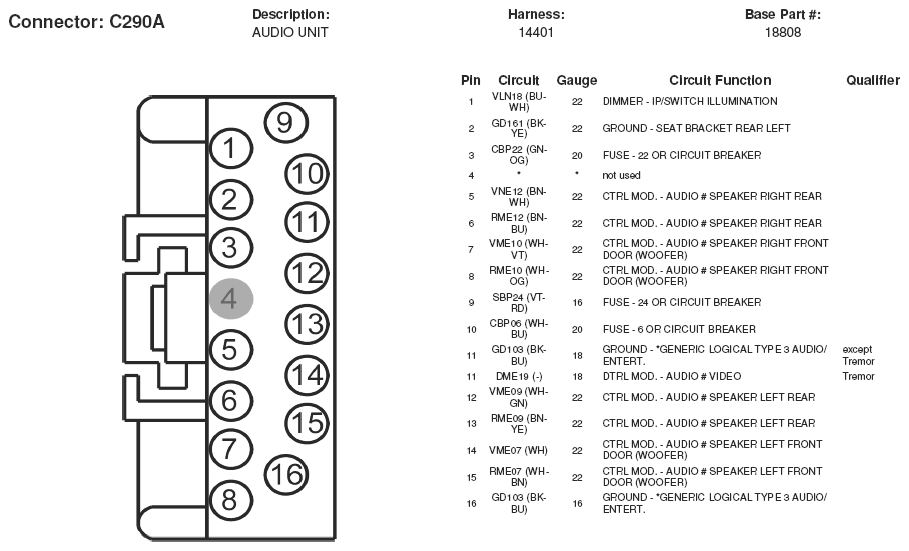

Fig 1: Audio Unit Connector End View (C290A)

G05169211

Courtesy of FORD MOTOR CO.
